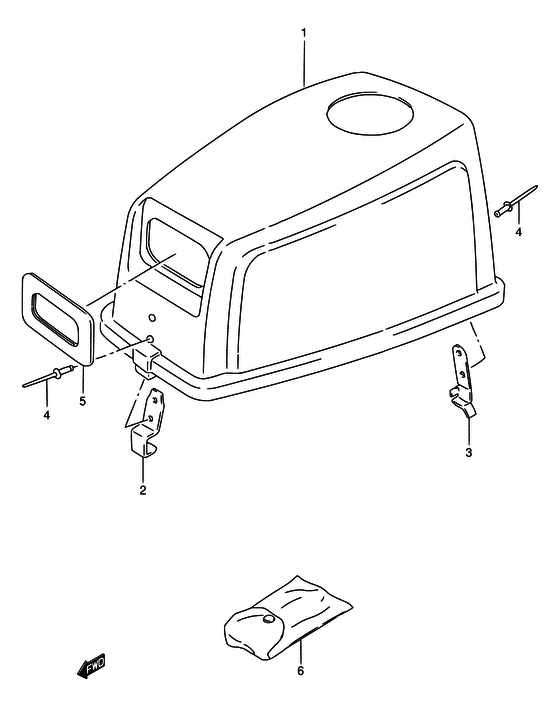

Каталоги запчастей для подвесных лодочных моторов Suzuki DT4 (J4) J4VJ Капот

#	код	цена	кол-во в узле
1	61410-98620-0EM Крышка двигателя Cover assy, engine	-- под заказ
2	61412-98601-000 Скоба крышки Hook, upper cover	-- под заказ
3	61611-98610-000 Защёлка верхняя Fastener, upper cover	336.30р под заказ	Preference
4	09229-04020-000 заклёпка	112.10р под заказ	Preference
5	61622-98600-000 Уплотнение кикстартера Seal, recoil starter	2'914.60р под заказ	Preference
6	09800-01001-000 Ключи	7'174.40р под заказ	Preference
