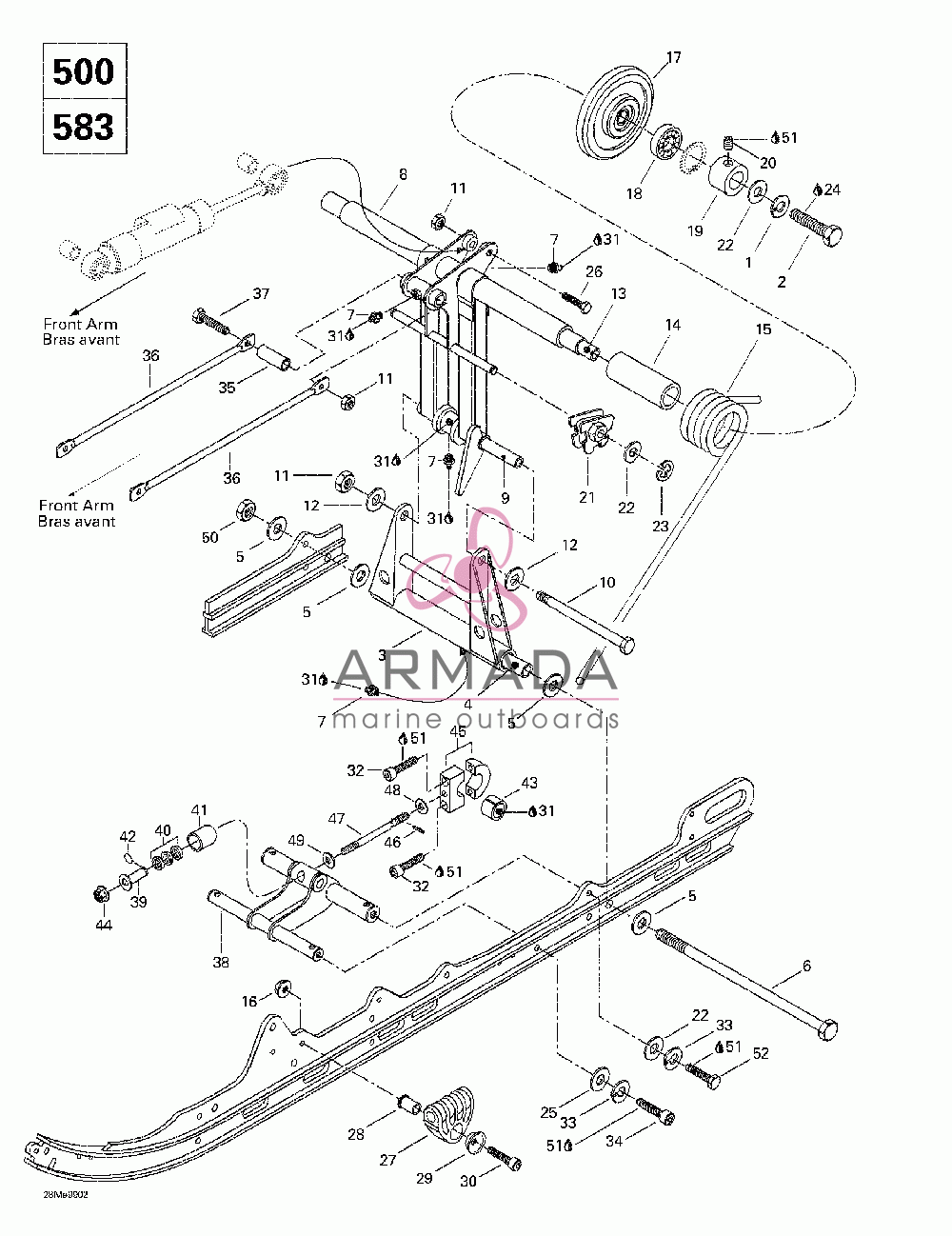

| # | код | цена | кол-во в узле |
|---|---|---|---|
| 1 | 234101601 Washer-lock Helical Din.127b-a2 Formula Z 500. Formula Z 583. |
128.54р под заказ |
|
| 2 | 207103544 Screw-hex.cap Iso.4017 Formula Z 500. Formula Z 583. |
424.27р под заказ |
|
| 3 | 503191372 Jumelle Peinte *arm-pivot P. Formula Z 500. Formula Z 583. |
12'913.07р под заказ |
|
| 4 | 503154703 Axe Inf. Jumel.*axle-piv.lower Formula Z 500. Formula Z 583. |
-- под заказ |
|
| 5 | 224081201 Washer-flat Formula Z 500. Formula Z 583. |
424.27р под заказ |
|
| 6 | 732601198 Boulon 248mm *bolt 248mm Formula Z 500. Formula Z 583. |
842.27р под заказ |
|
| 7 | 408200700 Graisseur *grease Fitting Formula Z 500. Formula Z 583. |
395.01р под заказ |
|
| 8 | 503189230 Bras Arriere *rear Arm Formula Z 500. |
-- под заказ |
|
| 503188961 Bras Arriere *arm-rear Formula Z 583. |
-- под заказ |
||
| 9 | 503144300 Axe Sup. Jumel.*axle-piv.upper Formula Z 500. Formula Z 583. |
1'225.79р под заказ |
|
| 10 | 732601197 Boulon Court *bolt-short Formula Z 500. Formula Z 583. |
1'507.94р под заказ |
|
| 11 | 232581414 Nut-stop Elastic Din.985 Formula Z 500. Formula Z 583. |
64.79р под заказ |
|
| 12 | 234081410 Washer-flat Din.125a Formula Z 500. Formula Z 583. |
194.37р под заказ |
|
| 13 | 503168700 Axe Transv.arr.*shaft-cross Rr Formula Z 500. Formula Z 583. |
2'940.63р под заказ |
|
| 14 | 572080700 Douille *bushing Formula Z 500. Formula Z 583. |
1'672.00р под заказ |
|
| 15 | 415010500 Ressort Dr.pein*spring-rh.p. Formula Z 500. Formula Z 583. |
7'510.42р под заказ |
|
| 414944200 Ressort Dr.pein*spring-rh. P. Formula Z 500. |
8'466.59р под заказ |
||
| 415010600 Ressort Ga.pein*spring-lh.p. Formula Z 500. Formula Z 583. |
104.50р под заказ |
||
| 414944300 Ressort Ga.pein*spring-lh.p. Formula Z 500. |
8'466.59р под заказ |
||
| 16 | 233281414 Nut-flange Elastic Din.6926 Formula Z 500. Formula Z 583. |
151.53р под заказ |
|
| 17 | 503189658 Roue 155 *wheel-155 Includes 17 - 18. Formula Z 500. Formula Z 583. |
4'837.31р под заказ |
|
| 18 | 293350055 Ball Bearing Formula Z 500. Formula Z 583. |
1'090.98р под заказ |
|
| 19 | 503168800 Bague D Appui *ring-retaining Formula Z 500. Formula Z 583. |
1'354.32р под заказ |
|
| 20 | 206260844 Screw-set Socket Din.913 Formula Z 500. Formula Z 583. |
171.38р под заказ |
|
| 21 | 572030900 Came Reglage Dr*cam-adjust.rh. Formula Z 500. Formula Z 583. |
2'657.44р под заказ |
|
| 572030800 Came Reglage Ga*cam-adjust.lh. Formula Z 500. Formula Z 583. |
2'657.44р под заказ |
||
| 22 | 234001410 0asher-flat Din.125a Formula Z 500. Formula Z 583. |
321.86р под заказ |
|
| 23 | 371907100 Circlip e *circlip-e Formula Z 500. Formula Z 583. |
121.22р под заказ |
|
| 24 | 293800060 Loctite 243 *loctite-243 Formula Z 500. Formula Z 583. |
-- под заказ |
|
| 25 | 503176700 Washer Flat Trempe Formula Z 583. |
-- под заказ |
|
| 26 | 207085044 Screw-hex.cap Din.931 Formula Z 500. Formula Z 583. |
424.27р под заказ |
|
| 27 | 503189657 Support Ressort*support-spring Formula Z 500. Formula Z 583. |
1'090.98р под заказ |
|
| 28 | 503188934 Axe Guide Ress.*axle-guide Spring Formula Z 500. Formula Z 583. |
1'031.42р под заказ |
|
| 29 | 503188929 Coussinet Reten*cushion-retain. Formula Z 500. Formula Z 583. |
459.80р под заказ |
|
| 30 | 205084544 Screw-socket Hd.din.912 Formula Z 500. Formula Z 583. |
424.27р под заказ |
|
| 31 | 293550033 Synthetic Grease 10x14oz Formula Z 500. Formula Z 583. |
15'003.07р под заказ |
|
| 32 | 205083044 Screw-socket Hd.din.912 Formula Z 583. |
424.27р под заказ |
|
| 33 | 234100602 Washer-lock Spring Din.128a-a2 Formula Z 583. |
424.27р под заказ |
|
| 34 | 205003544 Screw-socket Hd.din.912 Formula Z 583. |
424.27р под заказ |
|
| 35 | 503158600 Axe Barre Accou*shaft-tie Rod Formula Z 500. Formula Z 583. |
-- под заказ |
|
| 36 | 503187100 Tige Accoup. *tie-rod Formula Z 500. Formula Z 583. |
-- под заказ |
|
| 37 | 207087544 Screw-hex.cap Din.931 Formula Z 500. Formula Z 583. |
194.37р под заказ |
|
| 38 | 503188969 Attache *bracket Formula Z 583. |
-- под заказ |
|
| 39 | 503172900 Douille Soudee *bushing-weld. Formula Z 583. |
-- под заказ |
|
| 40 | 570049600 Butee Caout. *stopper-rubber Formula Z 583. |
320.82р под заказ |
|
| 41 | 503103600 Coupole *cup Formula Z 583. |
-- под заказ |
|
| 42 | 371910700 Circlip *circlip Formula Z 583. |
-- под заказ |
|
| 43 | 415027800 Coussinet *cushion Formula Z 583. |
1'881.00р под заказ |
|
| 44 | 233201414 Nut-flange Elastic Din.6926 Formula Z 583. |
174.52р под заказ |
|
| 45 | 503189044 Bloc Pivot Ass.*block-pivot Assy. Includes 45 - 46. Formula Z 583. |
-- под заказ |
|
| 46 | 732804011 Pin-rolled Din.1481 M3 X 18 Formula Z 583. |
-- под заказ |
|
| 47 | 503169100 Tige Filetee *rod-threaded Formula Z 583. |
-- под заказ |
|
| 49 | 503183400 Rondelle *washer Formula Z 583. |
246.62р под заказ |
|
| 51 | 293800005 Loctite 271 *loctite-271 Formula Z 500. Formula Z 583. |
-- под заказ |
|
| 52 | 207103044 Screw-hex.cap Iso.4017 Formula Z 583. |
171.38р под заказ |
|
| 48 | 503176700 Washer Flat Trempe Formula Z 583. |
-- под заказ |
|
| 50 | 233281414 Nut-flange Elastic Din.6926 Formula Z 500. Formula Z 583. |
151.53р под заказ |
Каталог несет в первую очередь справочную информацию, поэтому обращаем ваше внимание, что наличие деталей в каталоге не означает ее наличие на нашем складе.
