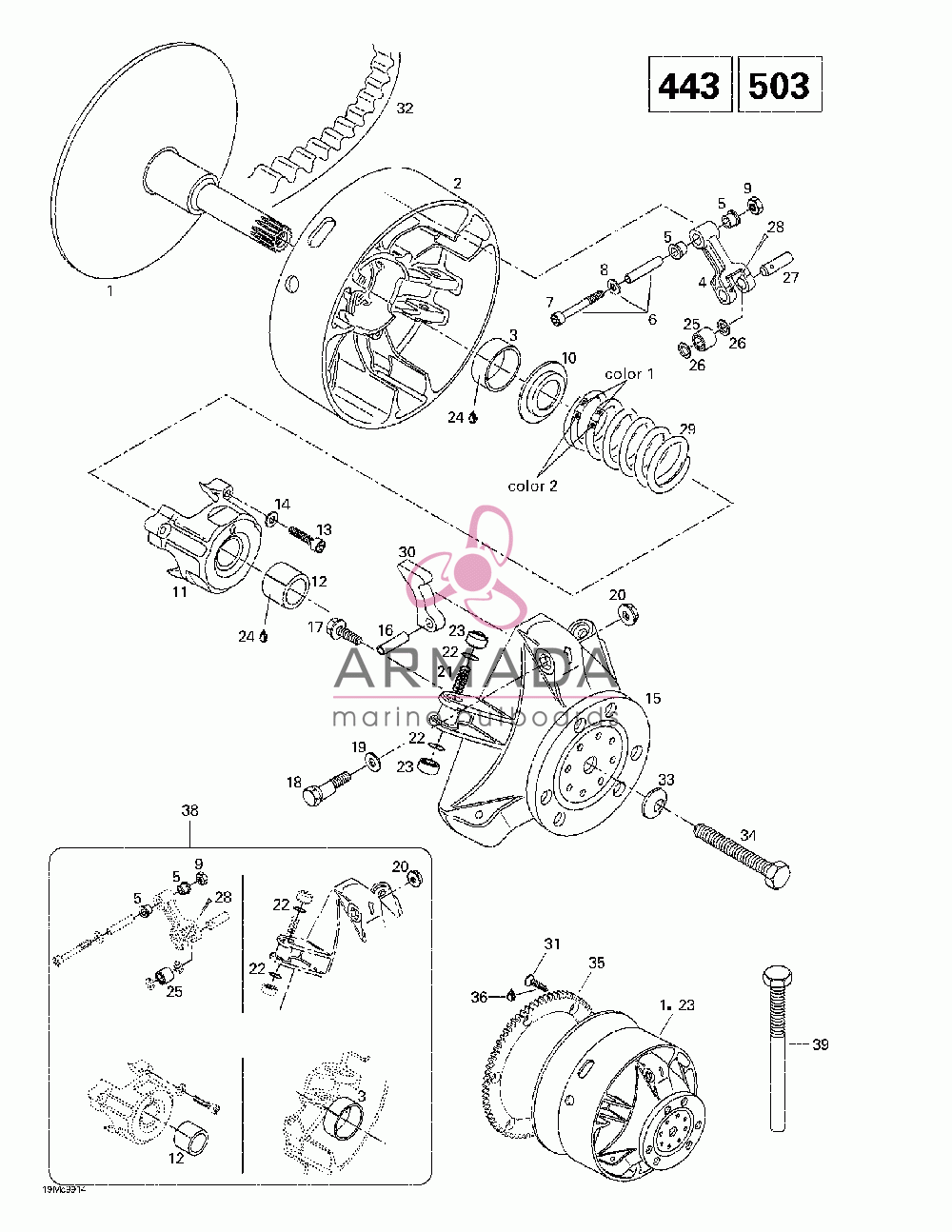

| # | код | цена | кол-во в узле |
|---|---|---|---|
| 1 | 417222412 Flasque Fixe Us*flange-fix.mac Touring Le. Touring Sle. |
47'771.13р под заказ |
|
| 2 | 417222241 Flasque Coul.as*flange-slid.as Includes 2 - 3. Touring Le. Touring Sle. |
40'605.57р под заказ |
|
| 3 | 417004201 Douille *bushing Touring Le. Touring Sle. |
2'985.57р под заказ |
|
| 4 | 417222383 Levier Ass. *lever-assy Includes 4 - 5. Touring Le. Touring Sle. |
8'599.31р под заказ |
|
| 5 | 417004305 Douille *bushing Touring Le. Touring Sle. |
1'028.28р под заказ |
|
| 6 | 417004800 Vis Assemble *screw-ass Y Includes 6 - 8. Touring Le. Touring Sle. |
3'448.50р под заказ |
|
| 7 | 205065044 Screw-socket Hd.din.912 Touring Le. Touring Sle. |
424.27р под заказ |
|
| 8 | 234061410 Washer-flat M6 Din.125a Touring Le. Touring Sle. |
144.21р под заказ |
|
| 9 | 232561414 Nut-stop Elastic Din.985 Touring Le. Touring Sle. |
194.37р под заказ |
|
| 10 | 417222044 Siege Ressort *seat-spring Touring Le. Touring Sle. |
860.04р под заказ |
|
| 11 | 417222157 Couv.ressort As*cover-spring Assy. Includes 11 - 12. Touring Le. Touring Sle. |
5'587.62р под заказ |
|
| 12 | 417004501 Douille *bushing Touring Le. Touring Sle. |
2'881.07р под заказ |
|
| 13 | 205064086 Screw-socket Hd.din.912 Gm6174m Touring Le. Touring Sle. |
853.77р под заказ |
|
| 14 | 420245370 Rondelle *washer Touring Le. Touring Sle. |
107.64р под заказ |
|
| 15 | 417222081 Cuvette Regul.a*govern.cup Assy. Touring Le. Touring Sle. |
62'550.57р под заказ |
|
| 16 | 732804009 Pin-rolled Din.1481 M8 X 24 Touring Le. Touring Sle. |
361.57р под заказ |
|
| 17 | 210361890 Screw-forming Hex.hd.black Oxide Touring Le. Touring Sle. |
1'282.22р под заказ |
|
| 18 | 417222955 Vis Calibration*screw-calib. Touring Le. Touring Sle. |
4'149.70р под заказ |
|
| 19 | 417005600 Rondelle *washer Touring Le. Touring Sle. |
638.50р под заказ |
|
| 20 | 233061414 Nut-flange Hexagonal Din.6927 Touring Le. Touring Sle. |
194.37р под заказ |
|
| 21 | 417005700 Ressort *spring Touring Le. Touring Sle. |
452.49р под заказ |
|
| 22 | 732401030 Joint Torique *o-ring Touring Le. Touring Sle. |
103.46р под заказ |
|
| 23 | 417223021 Glissiere *shoe-slider Touring Le. Touring Sle. |
825.55р под заказ |
|
| 24 | 413703100 Loctite 609 *loctite-609 Touring Le. Touring Sle. |
-- под заказ |
|
| 26 | 417004302 Rondelle Butee *washer-stopper Touring Le. Touring Sle. |
662.53р под заказ |
|
| 27 | 417004309 Goupille *pin Touring Le. Touring Sle. |
2'881.07р под заказ |
|
| 28 | 732958001 Goupille Fendue*pin-cotter Touring Le. Touring Sle. |
104.50р под заказ |
|
| 29 | 414817500 Ressort Embra. *spring-clutch Touring Le. |
4'254.20р под заказ |
|
| 414689800 Ressort Embra. *spring-clutch Touring Sle. |
5'001.37р под заказ |
||
| 30 | 417005284 Rampe 284 *ramp-284 Touring Le. |
-- под заказ |
|
| 31 | 236281684 Screw-forming Bn.hd.torx Touring Le. Touring Sle. |
1'716.94р под заказ |
|
| 32 | 415060600 Courroie *belt-drive Touring Le. Touring Sle. |
7'501.01р под заказ |
|
| 33 | 250200005 Washer-spring Conical Touring Le. Touring Sle. |
380.38р под заказ |
|
| 34 | 417113800 Boulon *bolt-pulley Drive Touring Le. Touring Sle. |
1'806.81р под заказ |
|
| 35 | 417222858 Cour.lancement *gear-ring Touring Le. Touring Sle. |
17'914.44р под заказ |
|
| 36 | 293800005 Loctite 271 *loctite-271 Touring Le. Touring Sle. |
-- под заказ |
|
| 38 | 417006100 Ens.rep.emb. *kit-clutch Rep Touring Le. Touring Sle. |
21'228.13р под заказ |
|
| 39 | 529007900 Extrac.poulie *puller-drive Touring Le. Touring Sle. |
10'507.48р под заказ |
|
| 11 | 417222304 Couvercle *spring Cover Includes 11 - 12. Touring Le. Touring Sle. |
9'972.44р под заказ |
|
| 35 | 415043100 Cour.lancement *gear-ring 86th Touring Le. Touring Sle. |
11'245.25р под заказ |
