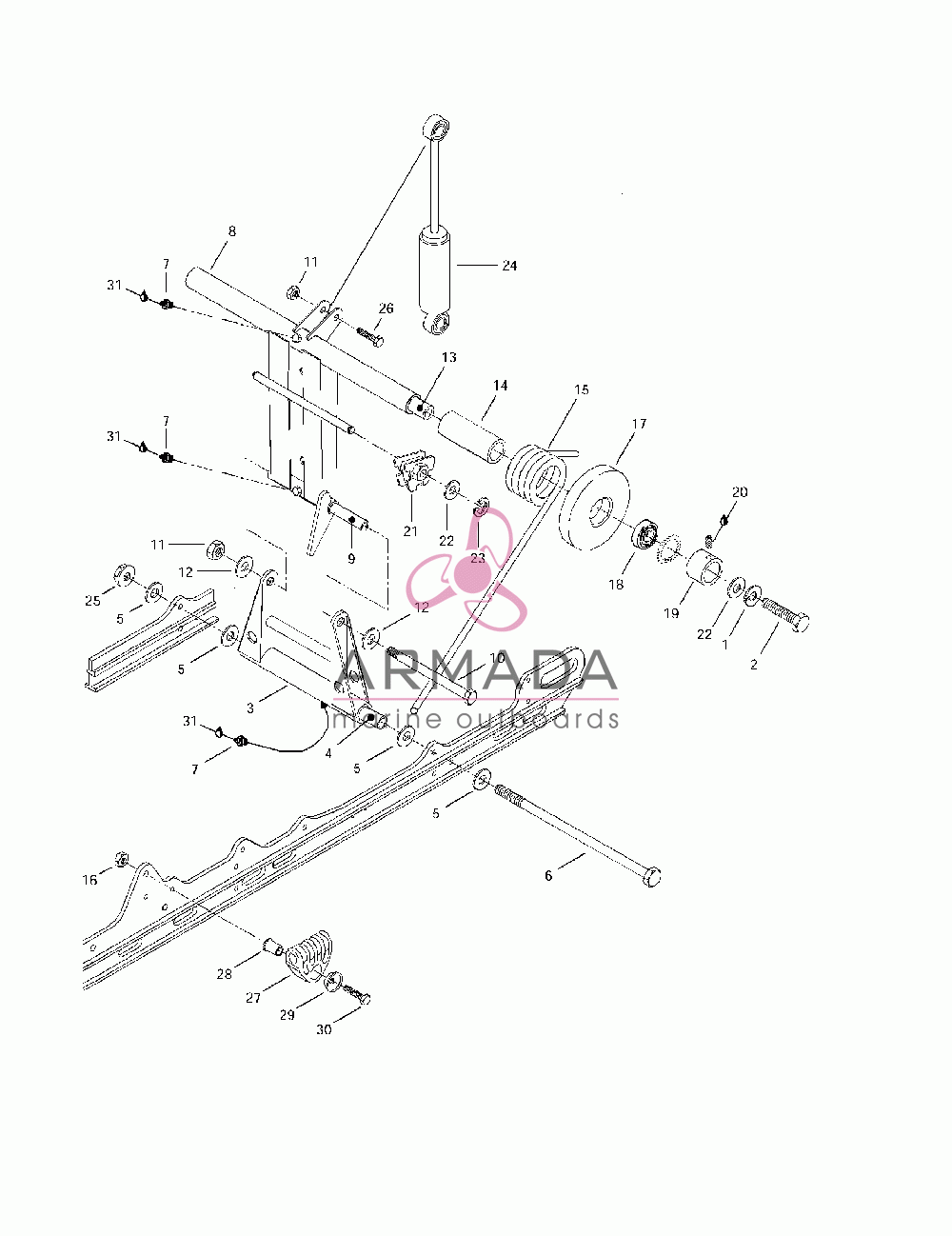

| # | код | цена | кол-во в узле |
|---|---|---|---|
| 1 | 234100602 Washer-lock Spring Din.128a-a2 Formula 500. Formula 500 Deluxe. Formula 583. |
424.27р под заказ |
|
| 2 | 207103544 Screw-hex.cap Iso.4017 Formula 500. Formula 500 Deluxe. Formula 583. |
424.27р под заказ |
|
| 3 | 503191372 Jumelle Peinte *arm-pivot P. Formula 500. Formula 500 Deluxe. Formula 583. |
12'913.07р под заказ |
|
| 4 | 503154703 Axe Inf. Jumel.*axle-piv.lower Formula 500. Formula 500 Deluxe. Formula 583. |
-- под заказ |
|
| 5 | 224081201 Washer-flat Formula 500. Formula 500 Deluxe. Formula 583. |
424.27р под заказ |
|
| 6 | 732601198 Boulon 248mm *bolt 248mm Formula 500. Formula 500 Deluxe. Formula 583. |
842.27р под заказ |
|
| 7 | 408200700 Graisseur *grease Fitting Formula 500. Formula 500 Deluxe. Formula 583. |
395.01р под заказ |
|
| 8 | 503170700 Bras Arriere *arm-rear Formula 500. Formula 500 Deluxe. Formula 583. |
-- под заказ |
|
| 9 | 503144300 Axe Sup. Jumel.*axle-piv.upper Formula 500. Formula 500 Deluxe. Formula 583. |
1'225.79р под заказ |
|
| 10 | 732601197 Boulon Court *bolt-short Formula 500. Formula 500 Deluxe. Formula 583. |
1'507.94р под заказ |
|
| 11 | 232581414 Nut-stop Elastic Din.985 Formula 500. Formula 500 Deluxe. Formula 583. |
64.79р под заказ |
|
| 12 | 234081410 Washer-flat Din.125a Formula 500. Formula 500 Deluxe. Formula 583. |
194.37р под заказ |
|
| 13 | 503168700 Axe Transv.arr.*shaft-cross Rr Formula 500. Formula 500 Deluxe. Formula 583. |
2'940.63р под заказ |
|
| 14 | 572086000 Douille *bushing Formula 500. Formula 500 Deluxe. Formula 583. |
1'881.00р под заказ |
|
| 15 | 414943500 Ressort Dr.pein*spring-rh.p. Formula 500. Formula 500 Deluxe. Formula 583. |
7'524.00р под заказ |
|
| 414943600 Ressort Ga.pein*spring-lh.p. Formula 500. Formula 500 Deluxe. Formula 583. |
8'315.07р под заказ |
||
| 16 | 232561414 Nut-stop Elastic Din.985 Formula 500. Formula 500 Deluxe. Formula 583. |
194.37р под заказ |
|
| 17 | 503189658 Roue 155 *wheel-155 Includes 17 - 18. Formula 500. Formula 500 Deluxe. Formula 583. |
4'837.31р под заказ |
|
| 18 | 293350055 Ball Bearing Formula 500. Formula 500 Deluxe. Formula 583. |
1'090.98р под заказ |
|
| 19 | 503168800 Bague D Appui *ring-retaining Formula 500. Formula 500 Deluxe. Formula 583. |
1'354.32р под заказ |
|
| 20 | 293800005 Loctite 271 *loctite-271 Formula 500. Formula 500 Deluxe. Formula 583. |
-- под заказ |
|
| 21 | 572030800 Came Reglage Ga*cam-adjust.lh. Formula 500. Formula 500 Deluxe. Formula 583. |
2'657.44р под заказ |
|
| 572030900 Came Reglage Dr*cam-adjust.rh. Formula 500. Formula 500 Deluxe. Formula 583. |
2'657.44р под заказ |
||
| 22 | 234001410 0asher-flat Din.125a Formula 500. Formula 500 Deluxe. Formula 583. |
321.86р под заказ |
|
| 23 | 371907100 Circlip e *circlip-e Formula 500. Formula 500 Deluxe. Formula 583. |
121.22р под заказ |
|
| 24 | 414802600 Coussinet *cushion Formula 500. Formula 500 Deluxe. Formula 583. |
547.58р под заказ |
|
| 24 | 503188973 Amortisseur *shock Formula 500. Formula 500 Deluxe. Formula 583. |
8'583.63р под заказ |
|
| 25 | 233281414 Nut-flange Elastic Din.6926 Formula 500. Formula 500 Deluxe. Formula 583. |
151.53р под заказ |
|
| 26 | 207084044 Screw-hex.cap Din.931 Formula 500. Formula 500 Deluxe. Formula 583. |
424.27р под заказ |
|
| 27 | 503189657 Support Ressort*support-spring Formula 500. Formula 500 Deluxe. Formula 583. |
1'090.98р под заказ |
|
| 28 | 503152700 Axe Guide Ress.*axle-guide Spring Formula 500. Formula 500 Deluxe. Formula 583. |
1'537.20р под заказ |
|
| 29 | 517041700 Rondelle Retenu*washer-retaine Formula 500. Formula 500 Deluxe. Formula 583. |
-- под заказ |
|
| 30 | 207064544 Screw-hex.cap Din.931 Formula 500. Formula 500 Deluxe. Formula 583. |
424.27р под заказ |
|
| 31 | 413706100 Graisse Lith. *grease Lith. Formula 500. Formula 500 Deluxe. Formula 583. |
-- под заказ |
Каталог несет в первую очередь справочную информацию, поэтому обращаем ваше внимание, что наличие деталей в каталоге не означает ее наличие на нашем складе.
