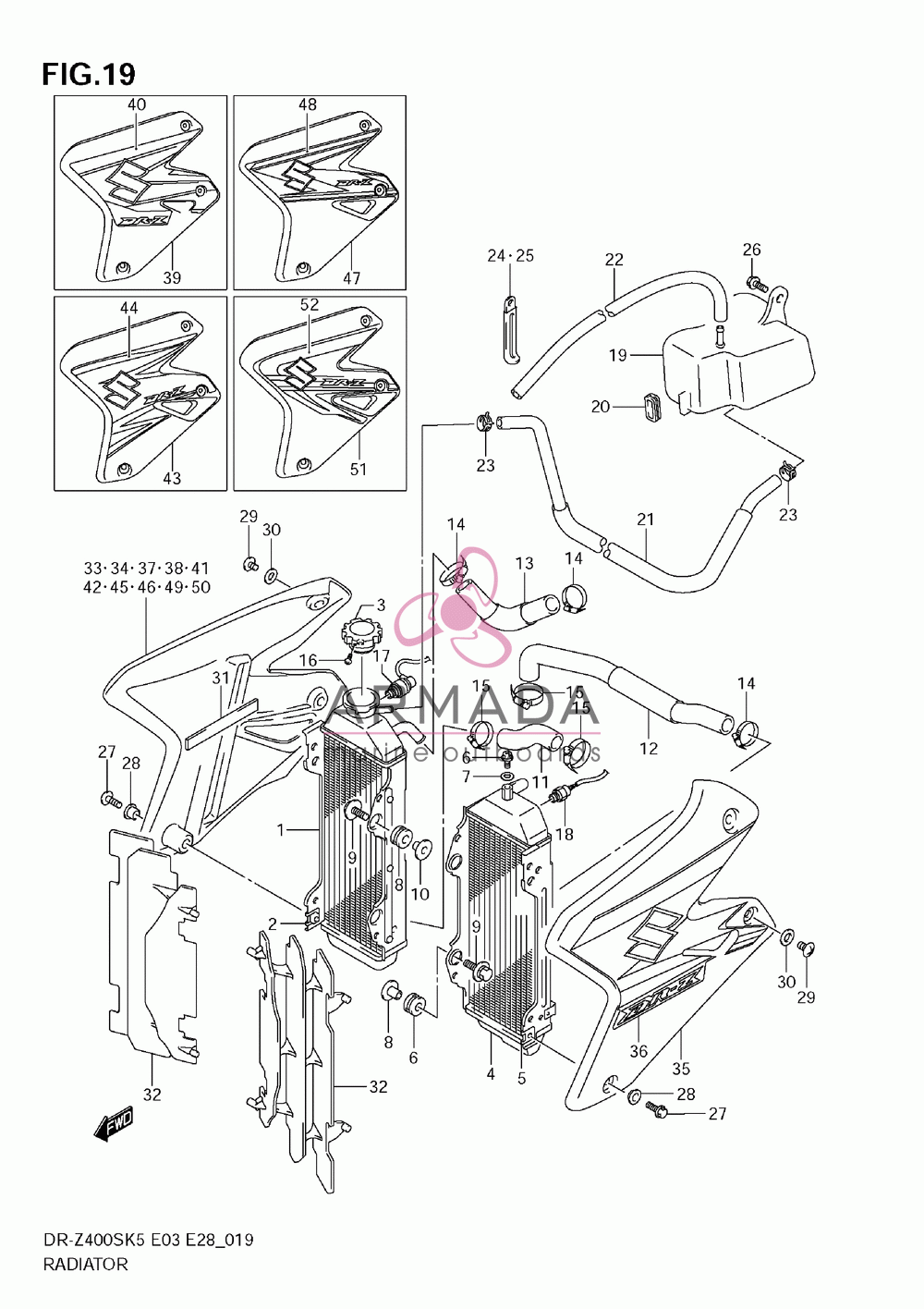

| # | код | цена | кол-во в узле |
|---|---|---|---|
| 1-1 | 17710-29F40 Radiator,water, (model K5/k6/k7) |
52'719.30р под заказ |
|
| 2 | 09148-06015 Гайка |
316.92р под заказ |
|
| 3 | 17730-19D11 Cap, Radiator 1.1 |
4'626.12р под заказ |
|
| 4-1 | 17720-29F40 Radiator Comp, W (model K5/k6/k7) |
54'799.80р под заказ |
|
| 6 | 17568-50F00 Болт |
499.32р под заказ |
|
| 7 | 09168-06026 Gasket, Drain Bolt |
324.90р под заказ |
|
| 8 | 17787-19A00 Cushion, Support |
387.60р под заказ |
|
| 9 | 09116-06147 Болт |
330.60р под заказ |
|
| 10 | 09180-06243 Проставка |
562.02р под заказ |
|
| 11 | 17851-29F10 Hose, Inlet |
1'502.52р под заказ |
|
| 12 | 17852-29F30 Hose, Outlet |
4'500.72р под заказ |
|
| 13 | 17853-29F10 Hose, Joint Upper |
2'386.02р под заказ |
|
| 14 | 09402-28513 Зажим |
722.76р под заказ |
|
| 15 | 09402-32512 Зажим |
1'143.42р под заказ |
|
| 16 | 17733-03D10 Screw, Radiator Cap |
239.40р под заказ |
|
| 17-1 | 34850-03D00 Switch Assy, Water Temp (model K5/k6/k7) |
10'711.44р под заказ |
|
| 17-2 | 34850-29F00 Switch Assy, Wat (model K8/k9) |
10'711.44р под заказ |
|
| 18 | 17680-24A30 Switch, Fan |
11'093.34р под заказ |
|
| 19 | 17911-29F11 Бачек |
5'454.90р под заказ |
|
| 20 | 17913-29F00 Cushion, Reservoir Tank |
393.30р под заказ |
|
| 21 | 17981-29F01 Hose, Inlet |
1'881.00р под заказ |
|
| 22 | 09352-50901-00B Hose, Tank Inlet (l:2000->650) |
2'731.44р под заказ |
|
| 23 | 09401-08411 Зажим |
183.54р под заказ |
|
| 24 | 09404-08205 Стяжка L-62 |
209.76р под заказ |
|
| 25 | 09404-06432 Зажим |
225.72р под заказ |
|
| 26 | 01550-0612B Болт |
246.24р под заказ |
|
| 27-1 | 02142-0616A Screw (model K5) |
140.22р под заказ |
|
| 27-2 | 09103-06274 Screw, Radiator Side (model K6/k7/k8/k9) |
209.76р под заказ |
|
| 28-1 | 09169-06060 Washer (model K5) |
197.22р под заказ |
|
| 28-2 | 09169-06053 Washer, Ca Holder (6.3x16x1) (model K6/k7/k8/k9) |
119.70р под заказ |
|
| 29-1 | 02142-0608A Bolt, Rr Brake Drum Cover (model K5) |
126.54р под заказ |
|
| 29-2 | 09103-06275 Screw, Tank Side (model K6/k7/k8/k9) |
209.76р под заказ |
|
| 30-1 | 09160-06126 Washer (6.5x14x2) (model K5) |
197.22р под заказ |
|
| 30-2 | 09160-06125 Washer (model K6/k7/k8/k9) |
197.22р под заказ |
|
| 31 | 47451-38A01 Cushion, Radiator Cover |
393.30р под заказ |
|
| 32 | 17831-37E11 Louver, Radiator |
2'083.92р под заказ |
|
| 33-1 | 17760-29F70-YJ4 Cover, Radiator Rh (blue) (model K5 For N9j ) |
23'113.50р под заказ |
|
| 33-2 | 17760-29F70-YU1 Cover, Radiator, Rh (yellow) (model K5 For Yu1 ) |
23'113.50р под заказ |
|
| 34-1 | 68665-29F70-YHU .tape, Radiator Cover Rh (model K5 For N9j ) |
-- под заказ |
|
| 34-2 | 68665-29F70-YHB .tape, Radiator Cover, Rh (model K5 For Yu1 ) |
-- под заказ |
|
| 35-1 | 17770-29F70-YJ4 Cover, Radiator Lh (blue) (model K5 For N9j ) |
-- под заказ |
|
| 35-2 | 17770-29F70-YU1 Cover, Radiator, Lh (yellow) (model K5 For Yu1 ) |
23'113.50р под заказ |
|
| 36-1 | 68675-29F70-YHU .tape, Radiator Cover Lh (model K5 For N9j ) |
18'534.12р под заказ |
|
| 36-2 | 68675-29F70-YHB .tape, Radiator Cover, Lh (model K5 For Yu1 ) |
-- под заказ |
|
| 37-1 | 17760-29F90-YJ4 Cover, Radiator Rh (blue) (model K6 For N9j ) |
24'114.42р под заказ |
|
| 37-2 | 17760-29F90-YU1 Cover, Radiator, Rh (yellow) (model K6 For Yu1 ) |
-- под заказ |
|
| 38-1 | 68665-29F90-CLV .tape, Radiator Cover Rh (model K6 For N9j ) |
-- под заказ |
|
| 38-2 | 68665-29F90-CET .tape, Radiator Cover, Rh (model K6 For Yu1 ) |
19'604.58р под заказ |
|
| 39-1 | 17770-29F90-YJ4 Cover, Radiator Lh (blue) (model K6 For N9j ) |
24'114.42р под заказ |
|
| 39-2 | 17770-29F90-YU1 Cover, Radiator, Lh (yellow) (model K6 For Yu1 ) |
24'114.42р под заказ |
|
| 40-1 | 68675-29F90-CLV .tape, Radiator Cover Lh (model K6 For N9j ) |
-- под заказ |
|
| 40-2 | 68675-29F90-CET .tape, Radiator Cover, Lh (model K6 For Yu1 ) |
19'604.58р под заказ |
|
| 41-1 | 17760-29FA0-YLW Cover, Radiator Rh (blue) (model K7 For N9j ) |
18'391.62р под заказ |
|
| 41-2 | 17760-29FA0-YU1 Cover, Radiator, Rh (yellow) (model K7 For Yu1 ) |
18'391.62р под заказ |
|
| 42-1 | 68665-29FA0-DUR .tape, Radiator Cover Rh (model K7 For N9j ) |
-- под заказ |
|
| 42-2 | 68665-29FA0-DRA .tape, Radiator Cover, Rh (model K7 For Yu1 ) |
8'000.52р под заказ |
|
| 43-1 | 17770-29FA0-YLW Cover, Radiator Lh (blue) (model K7 For N9j ) |
18'391.62р под заказ |
|
| 43-2 | 17770-29FA0-YU1 Cover, Radiator, Lh (yellow) (model K7 For Yu1 ) |
18'391.62р под заказ |
|
| 44-1 | 68675-29FA0-DUR .tape, Radiator Cover Lh (model K7 For N9j ) |
-- под заказ |
|
| 44-2 | 68675-29FA0-DRA .tape, Radiator Cover, Lh (model K7 For Yu1 ) |
8'000.52р под заказ |
|
| 45-1 | 17760-29FC0-019 Cover Comp, Radi (model K8 For 019 ) |
-- под заказ |
|
| 45-2 | 17760-29FC0-YLW Cover Comp, Radi (model K8 For Yky ) |
19'604.58р под заказ |
|
| 46-1 | 68665-29FD0-EVF Tape, Radiator C (model K8 For 019 ) |
8'587.62р под заказ |
|
| 46-2 | 68665-29FD0-EVK Tape, Radiator C (model K8 For Yky ) |
8'587.62р под заказ |
|
| 47-1 | 17770-29FC0-019 Cover Comp, Radi (model K8 For 019 ) |
19'604.58р под заказ |
|
| 47-2 | 17770-29FC0-YLW Cover Comp, Radi (model K8 For Yky ) |
19'604.58р под заказ |
|
| 48-1 | 68675-29FD0-EVF Tape, Radiator C (model K8 For 019 ) |
-- под заказ |
|
| 48-2 | 68675-29FD0-EVK Tape, Radiator C (model K8 For Yky ) |
8'587.62р под заказ |
|
| 49-1 | 17760-29FG0-019 Cover Comp, Radi (model K9) |
-- под заказ |
|
| 49-2 | 17760-29FG0-30H Cover Comp, Radi (model K9) |
-- под заказ |
|
| 50-1 | 68665-29FG0-GFJ Tape, Radiator C (model K9 For 019 ) |
-- под заказ |
|
| 50-2 | 68665-29FG0-GFK Tape, Radiator C (model K9 For 30h ) |
-- под заказ |
|
| 51-1 | 17770-29FG0-019 Cover Comp, Radi (model K9) |
19'604.58р под заказ |
|
| 51-2 | 17770-29FG0-30H Cover Comp, Radi (model K9) |
19'604.58р под заказ |
|
| 52-1 | 68675-29FG0-GFJ Tape, Radiator C (model K9 For 019 ) |
8'587.62р под заказ |
|
| 52-2 | 68675-29FG0-GFK Tape, Radiator C (model K9 For 30h ) |
-- под заказ |
|
| 5 | 09148-06015 Гайка |
316.92р под заказ |
|
| 25 | 09404-06429 Зажим |
185.82р под заказ |
|
| 1-2 | 17710-29F40 Radiator,water, (model K8/k9) |
52'719.30р под заказ |
|
| 4-2 | 17720-29F40 Radiator Comp, W (model K8/k9) |
54'799.80р под заказ |
Каталог несет в первую очередь справочную информацию, поэтому обращаем ваше внимание, что наличие деталей в каталоге не означает ее наличие на нашем складе.
