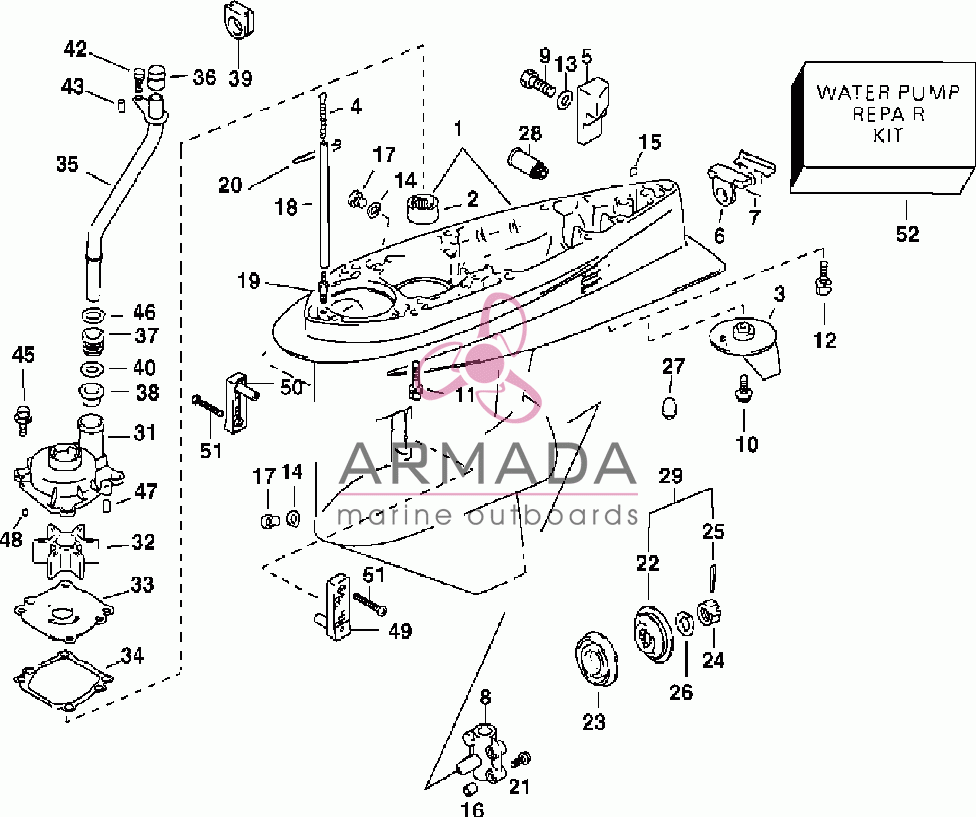

| # | код | цена | кол-во в узле |
|---|---|---|---|
| 1 | 5032540 G-case&bearing Blu ((included In Service Gearcase Assembly (not Shown).) ) |
-- под заказ |
|
| 2 | 5032541 Bearing, Pinion ((included In Service Gearcase Assembly (not Shown).) ) |
11'739.63р под заказ |
|
| 3 | 5032929 Trim Tab 60-140std ((included In Service Gearcase Assembly (not Shown).) ) |
3'968.63р под заказ |
|
| 4 | 5030906 Union ((included In Service Gearcase Assembly (not Shown).) ) |
821.75р под заказ |
|
| 5 | 5032930 Anode, Gear Case ((included In Service Gearcase Assembly (not Shown).) ) |
1'702.88р под заказ |
|
| 6 | 5037215 Seal ((included In Service Gearcase Assembly (not Shown).) ) |
1'293.19р под заказ |
|
| 7 | 5032545 Plate, Exh Seal ((included In Service Gearcase Assembly (not Shown).) ) |
985.63р под заказ |
|
| 8 | 5036740 Housing, Shift Cam ((included In Service Gearcase Assembly (not Shown).) ) |
6'746.19р под заказ |
|
| 9 | 5030338 Болт М6x12 |
366.94р под заказ |
|
| 10 | 5034400 Bolt (8x22mm) ((included In Service Gearcase Assembly (not Shown).) ) |
585.44р под заказ |
|
| 11 | 5034788 Bolt, (l55) |
1'213.63р под заказ |
|
| 12 | 5030401 Bolt, 10x80 |
1'934.44р под заказ |
|
| 13 | 5030430 Washer, 6.5x15x1 |
211.38р под заказ |
|
| 14 | 5030071 Fill Plug Washer ((included In Service Gearcase Assembly (not Shown). Included In Gearcase Seal Kit.) ) |
260.06р под заказ |
|
| 15 | 5030511 Pin ((included In Service Gearcase Assembly (not Shown).) ) |
636.50р под заказ |
|
| 16 | 5032549 Pin ((included In Service Gearcase Assembly (not Shown).) ) |
311.13р под заказ |
|
| 17 | 5030094 Plug, Drain, 10x7.5 ((included In Service Gearcase Assembly (not Shown).) ) |
1'296.75р под заказ |
|
| 18 | 5030564 Hose ((included In Service Gearcase Assembly (not Shown).) ) |
1'092.50р под заказ |
|
| 19 | 5030562 Hose ((included In Service Gearcase Assembly (not Shown).) ) |
-- под заказ |
|
| 20 | 5030589 Clamp(l:125) ((included In Service Gearcase Assembly (not Shown).) ) |
289.75р под заказ |
|
| 21 | 5030001 Bolt ((included In Service Gearcase Assembly (not Shown).) ) |
365.75р под заказ |
|
| 22 | 5030925 Spacer, Prop Nut |
3'581.50р под заказ |
|
| 23 | 5032551 Упорная шайба |
13'624.19р под заказ |
|
| 24 | 5030422 Гайка винта гребного |
1'463.00р под заказ |
|
| 25 | 5030087 Шплинт |
273.13р под заказ |
|
| 26 | 5030441 Шайба |
589.00р под заказ |
|
| 27 | 5032685 Plug, Water Tube |
2'639.81р под заказ |
|
| 28 | 5031537 Flush Attachment |
1'951.06р под заказ |
|
| 29 | 5030976 Propeller Nut Kit |
5'969.56р под заказ |
|
| 30 | 5030973 Kit, Seal Gearcase ( Also Order Kit 5034776) |
6'531.25р под заказ |
|
| 31 | 5030722 Корпус водной помпы |
13'624.19р под заказ |
|
| 32 | 5030723 Implr, Water Pump ((included In Water Pump Repair Kit.) ) |
9'177.00р под заказ |
|
| 33 | 5030724 Panel, Pump ((included In Water Pump Repair Kit.) ) |
2'429.63р под заказ |
|
| 34 | 5030725 Gasket ((included In Gearcase Seal Kit. Included In Water Pump Repair Kit.) ) |
1'802.63р под заказ |
|
| 35 | 5030726 Tube, Water L |
5'084.88р под заказ |
|
| 36 | 5030727 Втулка |
1'951.06р под заказ |
|
| 37 | 5030728 Bush Lower |
1'951.06р под заказ |
|
| 38 | 5030729 Bush, Pump Case |
2'629.13р под заказ |
|
| 40 | 5030735 Spacer, Tube |
636.50р под заказ |
|
| 41 | 5030739 Фильтр |
1'073.50р под заказ |
|
| 42 | 5030038 Bolt, M6x16 |
395.44р под заказ |
|
| 43 | 5030509 Штифт |
-- под заказ |
|
| 44 | 5030406 Screw, 5x12 |
206.63р под заказ |
|
| 45 | 5030398 Bolt, 8x25 |
632.94р под заказ |
|
| 46 | 5030461 Шайба |
315.88р под заказ |
|
| 47 | 5030508 Штифт |
387.13р под заказ |
|
| 48 | 5030591 Key, Wtr Pmp Impel ((included In Water Pump Repair Kit.) ) |
888.25р под заказ |
|
| 49 | 5032594 Filter, Water, Port ((included In Service Gearcase Assembly (not Shown).) ) |
1'041.44р под заказ |
|
| 50 | 5032595 Filter, Water, Strb ((included In Service Gearcase Assembly (not Shown).) ) |
1'041.44р под заказ |
|
| 51 | 5032596 Screw ((included In Service Gearcase Assembly (not Shown).) ) |
254.13р под заказ |
|
| 52 | 5031731 Wtr Pmp & Shft Con |
13'624.19р под заказ |
|
| 1 | 5036614 G-case&brg, 60-115 ((included In Service Gearcase Assembly (not Shown).) ) |
251'824.81р под заказ |
|
| 19 | 5031275 Hose ((included In Service Gearcase Assembly (not Shown).) ) |
-- под заказ |
|
| 33 | 5037170 Panel ((included In Water Pump Repair Kit.) ) |
3'009.13р под заказ |
Каталог несет в первую очередь справочную информацию, поэтому обращаем ваше внимание, что наличие деталей в каталоге не означает ее наличие на нашем складе.
