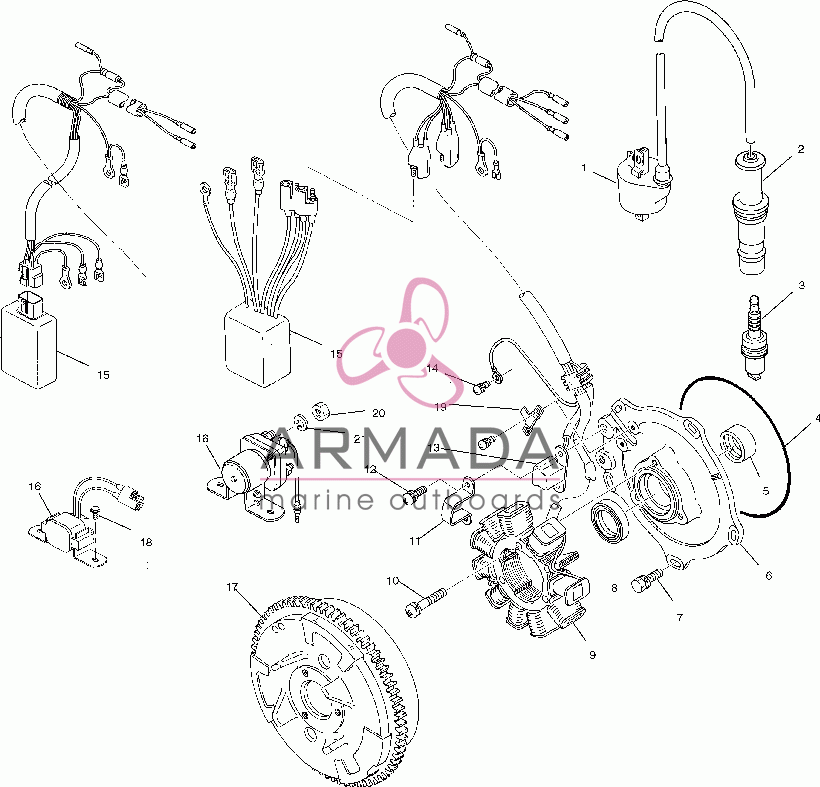

| # | код | цена | кол-во в узле |
|---|---|---|---|
| 1 | 3084979 Coil, Ignition (if Built Before 8/09/02 In 2x4) |
22'093.20р под заказ |
|
| 1 | 3085227 Coil, Ignition * [if Built After 8/09/02 In 2x4)(4x4)(6x6) |
30'322.56р под заказ |
|
| 2 | 3084980 Cap, Sparkplug * |
7'940.56р под заказ |
|
| 3 | 3070175 Sparkplug, Bkr5e(4) |
605.04р под заказ |
|
| 4 | 3084978 Кольцо уплотнительное |
3'464.16р под заказ |
|
| 5 | 3084972 Bearing, Metal |
3'464.16р под заказ |
|
| 6 | 3086859 Plate, Asm * [incl. 5, 6, 8-14](if Built Before 8/09/02 In 2x4) |
88'082.56р под заказ |
|
| 6 | 3089269 Asm-plate [incl. 5, 6, 8-14](if Built After 8/09/02 In 2x4)(4x4)(6x6) |
-- под заказ |
|
| 6 | 3084971 Plate (if Built Before 8/09/02 In 2x4) |
-- под заказ |
|
| 6 | 3086981 Plate (if Built After 8/09/02 In 2x4)(4x4)(6x6) |
-- под заказ |
|
| 7 | 3081657 Болт с шайбой (отпуск.по 10шт) |
374.00р под заказ |
|
| 8 | 3084973 Сальник |
2'308.96р под заказ |
|
| 9 | 3086860 Stator * [incl. 13](if Built Before 8/09/02 In 2x4) |
85'198.89р под заказ |
|
| 9 | 3087168 Stator [incl. 13](if Built After 8/09/02 In 2x4)(4x4)(6x6) |
84'096.94р под заказ |
|
| 10 | 3081342 Screw&washer Asm(10) (if Built Before 8/09/02 In 2x4) |
171.84р под заказ |
|
| 10 | 3086985 Asm., Screw And Washer [if Built After 8/09/02 In 2x4)(4x4)(6x6) |
-- под заказ |
|
| 11 | 3085554 Band, Pulse |
-- под заказ |
|
| 12 | 3084976 Screw&washer Asm. |
374.00р под заказ |
|
| 13 | 3085360 Coil, Pulser * |
15'160.56р под заказ |
|
| 14 | 3081256 Screw&washer Asm(10) |
171.84р под заказ |
|
| 15 | 3085639 Cdi System * (if Built Before 8/09/02 In 2x4) |
53'426.56р под заказ |
|
| 15 | 3087169 Cdi-system (if Built After 8/09/02 In 2x4)(if Built After 1/03 In 4x4 And 6x6) |
-- под заказ |
|
| 15 | 3087201 Cdi-system (if Built Before 1/03 In 4x4 And 6x6) |
-- под заказ |
|
| 16 | 4011335 Switch-magnetic (if Built Before 8/09/02 In 2x4) |
7'218.56р под заказ |
|
| 16 | 4011087 Switch-magnetic [if Built After 8/09/02 In 2x4)(4x4)(6x6) |
13'716.56р под заказ |
|
| 17 | 3086857 Flywheel, W/ring Gear * (if Built Before 8/09/02 In 2x4) |
71'158.70р под заказ |
|
| 17 | 3087166 Flywheel-w/ring Gear [if Built After 8/09/02 In 2x4)(4x4)(6x6) |
63'534.56р под заказ |
|
| 18 | 3085359 Bolt, Flange(10) (use W/3087198) |
144.40р под заказ |
|
| 19 | 3084977 Clamp [2x4](if Built Before 8/09/02) |
-- под заказ |
|
| 21 | 3080077 Washer Spring(10) [2x4](if Built Before 8/09/02) |
144.40р под заказ |
|
| 20 | 3083073 Nut [2x4](if Built Before 8/09/02) |
144.40р под заказ |
Каталог несет в первую очередь справочную информацию, поэтому обращаем ваше внимание, что наличие деталей в каталоге не означает ее наличие на нашем складе.
