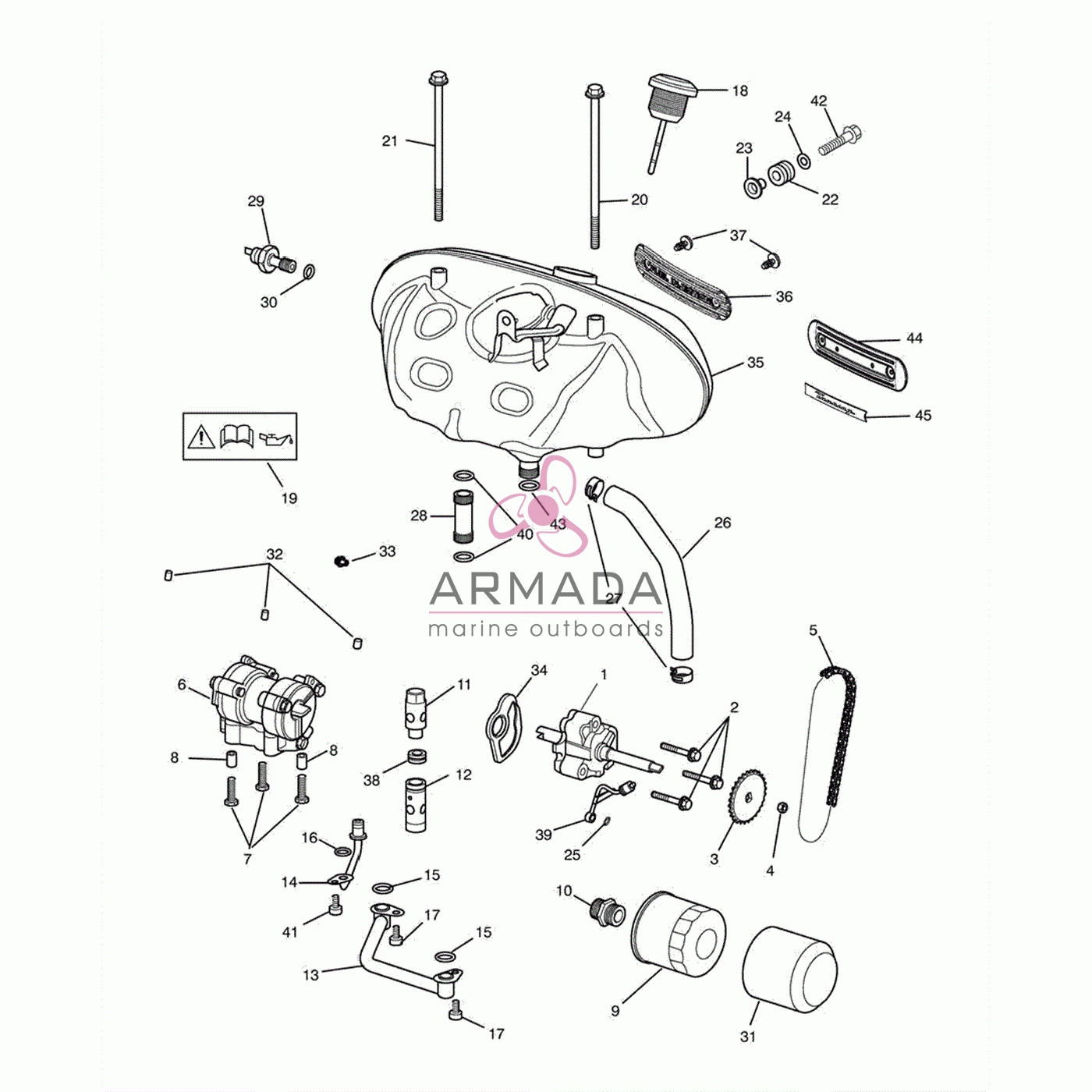

| # | код | цена | кол-во в узле |
|---|---|---|---|
| 1 | T1210092 Pump, Oil |
40'616.87р под заказ |
|
| 2 | T3201029 Bolt, Rhhf, M6x40,raw,10.9 |
256.69р под заказ |
|
| 3 | T1210810 Sprocket, Oil Pump, 25t |
4'361.07р под заказ |
|
| 4 | T3350134 Locknut, M10 X 1.25 |
335.16р под заказ |
|
| 5 | T1210007 Chain, 6.35 Pitch, 70 Links |
13'776.14р под заказ |
|
| 6 | T1210002 Pump, Oil, Twin Rotor |
62'859.79р под заказ |
|
| 7 | T3331041 Screw, Pan/hd, Tx, M6x1.0x25, Enc |
196.84р под заказ |
|
| 8 | T3000101 Dowel, Hollow, 8x14 |
493.43р под заказ |
|
| 9 | T1210200 Oil Filter |
2'209.13р под заказ |
|
| 9 | T1210441 Oil Filter Multipack (50) |
91'182.14р под заказ |
|
| 9 | T1210440 Oil Filter Multipack (25) |
63'826.70р под заказ |
|
| 10 | T1210523 Adapter, Oil Filter |
1'393.84р под заказ |
|
| 11 | T1210059 Valve, Pressure Relief |
1'085.28р под заказ |
|
| 12 | T1210003 Check Valve, Oil |
4'322.50р под заказ |
|
| 13 | T1210008 Pipe, Oil Feed |
5'486.25р под заказ |
|
| 14 | T1210009 Pipe, Oil Feed |
1'085.28р под заказ |
|
| 15 | T3600085 O-ring, Id 14.6, Sd 2.4 |
513.38р под заказ |
|
| 16 | T3600104 O-ring, Id 12.1x1.6 |
196.84р под заказ |
|
| 17 | T3051062 Screw, Cap/hd, M6x1x12, Enc, Raw |
196.84р под заказ |
|
| 18 | T1213000 Cap, Filler, Oil Tank, Moulded |
5'762.89р под заказ |
|
| 19 | T3900136 Label,oil&filter, Diagramatic |
355.11р под заказ |
|
| 20 | T3203094 Bolt, Rhhf, M8x1.25x165, Silv, Enc |
1'302.07р под заказ |
|
| 21 | T3203090 Bolt, Rhhf, M8x1.25x150, Silv, Enc |
1'302.07р под заказ |
|
| 22 | T3021200 Grommet, Dia 14.0 X 4.0 Panel |
395.01р под заказ |
|
| 23 | T3010075 Flanged Sleeve, M6x10.0x14.5 |
602.49р под заказ |
|
| 24 | T3551205 Washer, M6x14x1.6, Form C |
195.51р под заказ |
|
| 25 | T3550542 Washer, Cu, Od12.5, Id6.4, 0.8 |
196.84р под заказ |
|
| 26 | T1210024 Pipe, Breather, Oil Tank |
2'328.83р под заказ |
|
| 27 | T3700051 Clip, Breather Pipe |
296.59р под заказ |
|
| 28 | T1210025 Трубка |
6'369.37р под заказ |
|
| 29 | T1210504 Switch & Banjo Bolt, Oil Press |
2'545.62р под заказ |
|
| 30 | T3550546 Washer, M6 |
196.84р под заказ |
|
| 31 | T1210041 Cover, Oil Filter, Chromed |
8'585.15р под заказ |
|
| 32 | T1211000 Sleeve. Oil Jet, Piston |
790.02р под заказ |
|
| 33 | T1210057 Oil Cooling Jet |
3'887.59р под заказ |
|
| 34 | T1210064 Strainer, Oil Pump |
5'941.11р под заказ |
|
| 35 | T1210159 Catch Tank, Oil, Painted, Black |
57'390.83р под заказ |
|
| 36 | T1210053 Embellidher, Catch Tank Not Abs Version |
15'473.22р под заказ |
|
| 37 | T3330999 Screw, But/hd, Skt, M6x1.0x12, S/s |
473.48р под заказ |
|
| 38 | T3550970 Spring O/d15.24, 12.70fl |
828.59р под заказ |
|
| 39 | T1210108 Spray Bar, Oil, Assy |
4'854.50р под заказ |
|
| 40 | T3600134 O-ring, Id14.3sd2.4 |
513.38р под заказ |
|
| 41 | T3051063 Screw, Cap/hd, M6x1x16, Enc, Raw |
196.84р под заказ |
|
| 42 | T3205067 Bolt, Hhf, Lghtd, M6x1.0x25, Slv |
335.16р под заказ |
|
| 43 | T3600117 O Ring, 17x3.0 |
908.39р под заказ |
|
| 44 | T1215000 Embellisher, Oil Tank Abs Version |
14'743.05р под заказ |
|
| 45 | T1215001 Badge, Oil Tank, Touring Abs Version |
8'091.72р под заказ |
Каталог несет в первую очередь справочную информацию, поэтому обращаем ваше внимание, что наличие деталей в каталоге не означает ее наличие на нашем складе.
