| # | код | цена | кол-во в узле |
|---|---|---|---|

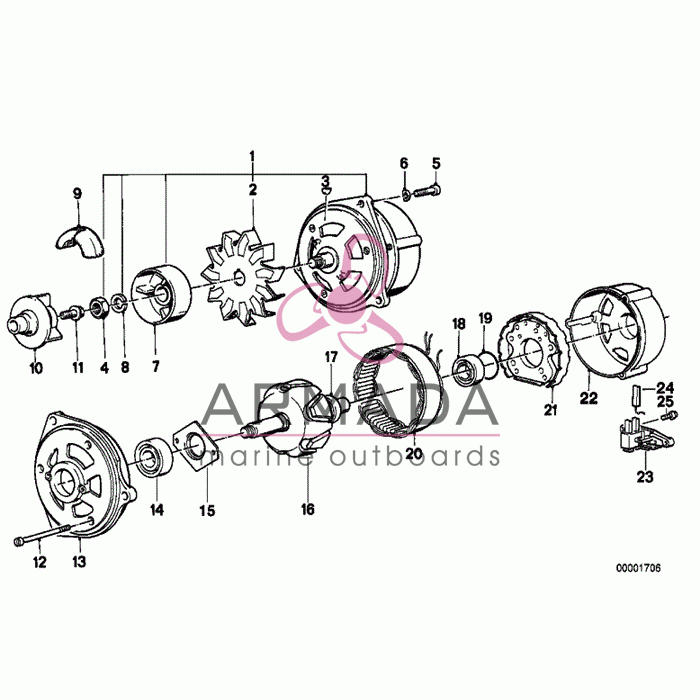

| 01 | 12312305316 Generator - 33a (to 09/92) |
-- под заказ |
|
| 02 | 12311459036 Fan Wheel (to 09/92) |
-- под заказ |
|
| 03 | 07119951453 Woodruff Key - 4x5 (to 09/92) |
-- под заказ |
|
| 04 | 12311459814 Hex Nut - M16x1, 5 (to 09/92) For Vehicles With Reinforced Power Supply (code: X509a) Or Heated Handlebar Grips (code: X519a) Or Integral Abs (code: X645a) Or Abs Electronic Evo (code: X684a) |
-- под заказ |
|
| 04 | 07119901309 Hex Nut - M14x1, 5 (to 02/87) |
-- под заказ |
|
| 05 | 07119919643 Fillister-head Screw - M8x30 (to 09/92) |
182.21р под заказ |
|
| 06 | 07119932095 Wave Washer - B8 (to 09/92) |
-- под заказ |
|
| 07 | 12311460302 Clutch Housing (to 09/92) |
-- под заказ |
|
| 08 | 07119933155 Spring Washer - B16 (to 09/92) |
-- под заказ |
|
| 08 | 07119933148 Spring Washer - B14 (to 02/87) |
-- под заказ |
|
| 09 | 12311464877 Rubber Mounting (to 09/92) |
1'822.10р под заказ |
|
| 10 | 12311460304 Driving Dog (to 09/92) |
12'502.00р под заказ |
|
| 11 | 12311461463 Screw - M8x40 (to 09/92) |
258.02р под заказ |
|
| 11 | 12311460853 Screw - M8x22 Only In Conjunction With |
3'509.87р под заказ |
|
| 12 | 12311459289 Fillister-head Screw (to 09/92) |
-- под заказ |
|
| 13 | 12311459277 Housing Assy Front (to 09/92) |
-- под заказ |
|
| 14 | 12311459278 Grooved Ball Bearing (to 09/92) |
-- под заказ |
|
| 15 | 12311459279 Supporting Plate (to 09/92) |
-- под заказ |
|
| 16 | 12311459280 Rotor (to 09/92) |
-- под заказ |
|
| 17 | 12311459281 Slip Ring (to 09/92) |
-- под заказ |
|
| 18 | 12311714521 Grooved Ball Bearing - 28x12x12 (to 09/92) |
-- под заказ |
|
| 19 | 12311276224 O-ring (to 09/92) |
-- под заказ |
|
| 20 | 12311459288 Stator Assy (to 09/92) |
-- под заказ |
|
| 21 | 12311459284 Diode Assy (to 09/92) |
-- под заказ |
|
| 22 | 12311459283 Housing Assy Rear (to 09/92) |
-- под заказ |
|
| 23 | 12311459286 Voltage Regulator (to 09/92) |
-- под заказ |
|
| 24 | 12311727756 Set: Carbon Brush Set (to 09/92) |
-- под заказ |
|
| 25 | 12311459291 Screw (to 09/92) |
-- под заказ |
Каталог несет в первую очередь справочную информацию, поэтому обращаем ваше внимание, что наличие деталей в каталоге не означает ее наличие на нашем складе.
