| # | код | цена | кол-во в узле |
|---|---|---|---|

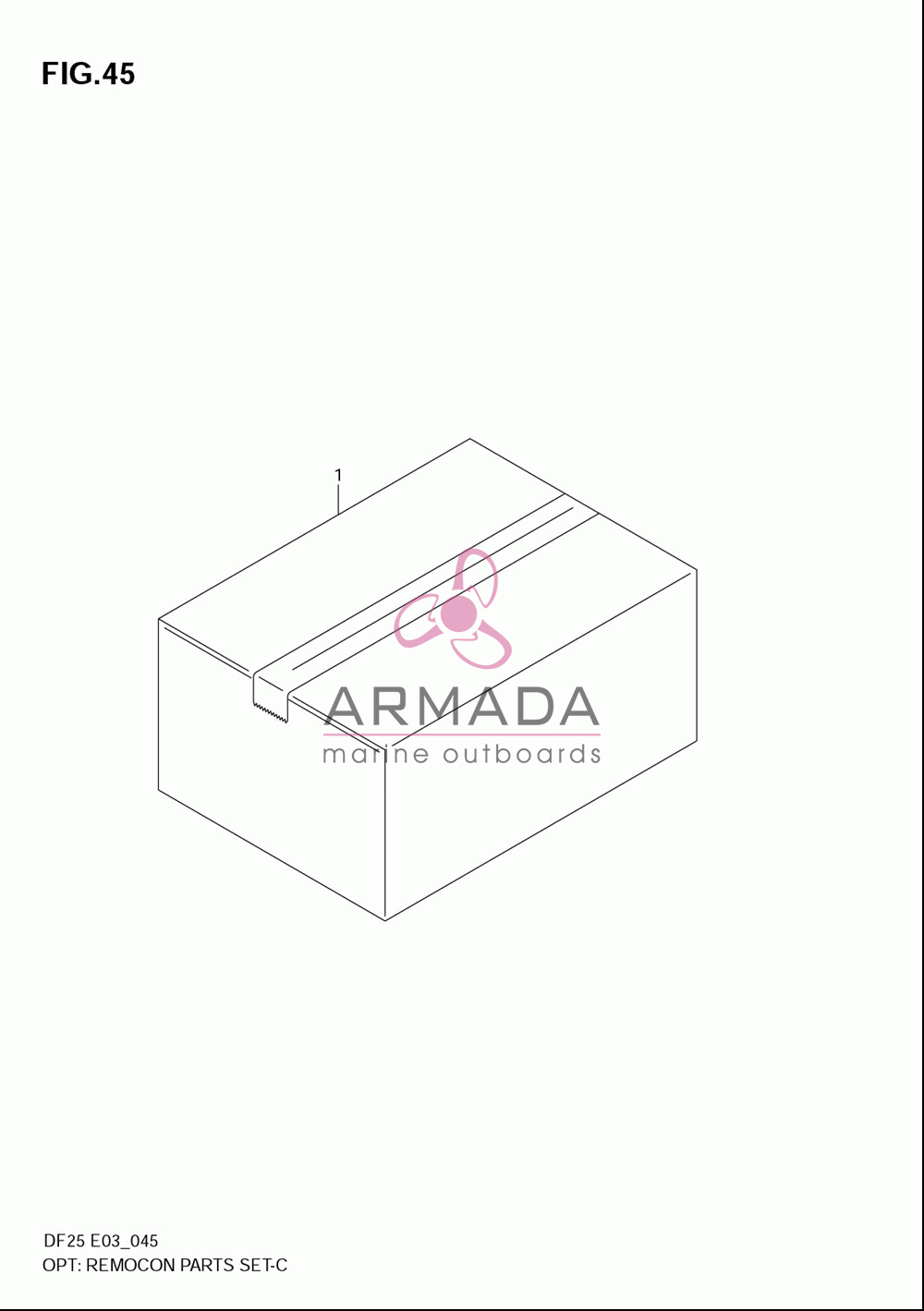

| 1 | 67130-95J01 Parts Assy, Rem () |
-- под заказ |
|
| 2 | 21241-95J00 Link, Clutch Lev (not Shown, Refer To Fig.16) |
2'466.20р под заказ |
|
| 3 | 23210-95J00 Lever Comp, Clut (not Shown, Refer To Fig.16) |
3'811.40р под заказ |
|
| 4 | 09160-05029 .washer (not Shown, Refer To Fig.16) |
112.10р под заказ |
|
| 5 | 09160-06084 Washer (6.5x18x1.6) (not Shown, Refer To Fig.16) |
112.10р под заказ |
|
| 6 | 09180-06230 Spacer, 6.2x12x1 (not Shown, Refer To Fig.16) |
336.30р под заказ |
|
| 7 | 09204-01002 Pin, Cotter (not Shown,refer To Fig.16) |
112.10р под заказ |
|
| 8 | 01550-06257 ..bolt (not Shown, Refer To Fig.16) |
112.10р под заказ |
|
| 9 | 19120-95J00 Lever Comp, Thro (not Shown, Refer To Fig.12) |
3'587.20р под заказ |
|
| 10 | 19122-95J00 Lever, Interlink (not Shown, Refer To Fig.12) |
1'008.90р под заказ |
|
| 11 | 19185-95J00 Spring, Throttle (not Shown, Refer To Fig.12) |
1'233.10р под заказ |
|
| 12 | 19761-95J00 Stay, Throttle C (not Shown, Refer To Fig.12) |
1'345.20р под заказ |
|
| 13 | 63610-95J10 Cable, Throttle (not Shown, Refer To Fig.30) |
-- под заказ |
|
| 14 | 09160-06047 .washer, Throttle Lever (not Shown,refer To Fig.12) |
112.10р под заказ |
|
| 15 | 01550-06127 Bolt (not Shown, Refer To Fig.12) |
112.10р под заказ |
|
| 16 | 01550-06167 .bolt, Remocon Cable Holder (not Shown,refer To Fig.12) |
112.10р под заказ |
|
| 17 | 67467-89J01 Connector (not Shown, Refer To Fig.12) |
1'121.00р под заказ |
|
| 18 | 09160-06055 Washer (7x12x1.0) (not Shown, Refer To Fig.32) |
224.20р под заказ |
|
| 19 | 09385-06012 Clip (not Shown, Refer To Fig.32) |
224.20р под заказ |
|
| 20 | 67340-95J00 Holder Comp, R/c (clutchnot Shown, Refer To Fig.12) |
-- под заказ |
|
| 21 | 67350-95J00 Holder, R/con Ca (throttlenot Shown, Refer To Fig.12) |
-- под заказ |
|
| 22 | 09116-06094 Bolt, 6x15 (not Shown, Refer To Fig.32) |
112.10р под заказ |
|
| 23 | 09308-08013 Grommet (not Shown, Refer To Fig.32) |
224.20р под заказ |
|
| 24 | 36610-95J20 Harness Assy, Wi (not Shown, Refer To Fig.23) |
33'966.30р под заказ |
|
| 25 | 36616-95J00 Holder, Connecto (not Shown, Refer To Fig.23) |
1'121.00р под заказ |
|
| 26 | 37163-95J00 Plug, Starting S (not Shown, Refer To Fig.22) |
224.20р под заказ |
|
| 27 | 02142-06167 Screw (not Shown, Refer To Fig.23) |
112.10р под заказ |
|
| 28 | 61124-95J20 Grommet, Cable (not Shown, Refer To Fig.28) |
6'277.60р под заказ |
Каталог несет в первую очередь справочную информацию, поэтому обращаем ваше внимание, что наличие деталей в каталоге не означает ее наличие на нашем складе.
