| # | код | цена | кол-во в узле |
|---|---|---|---|

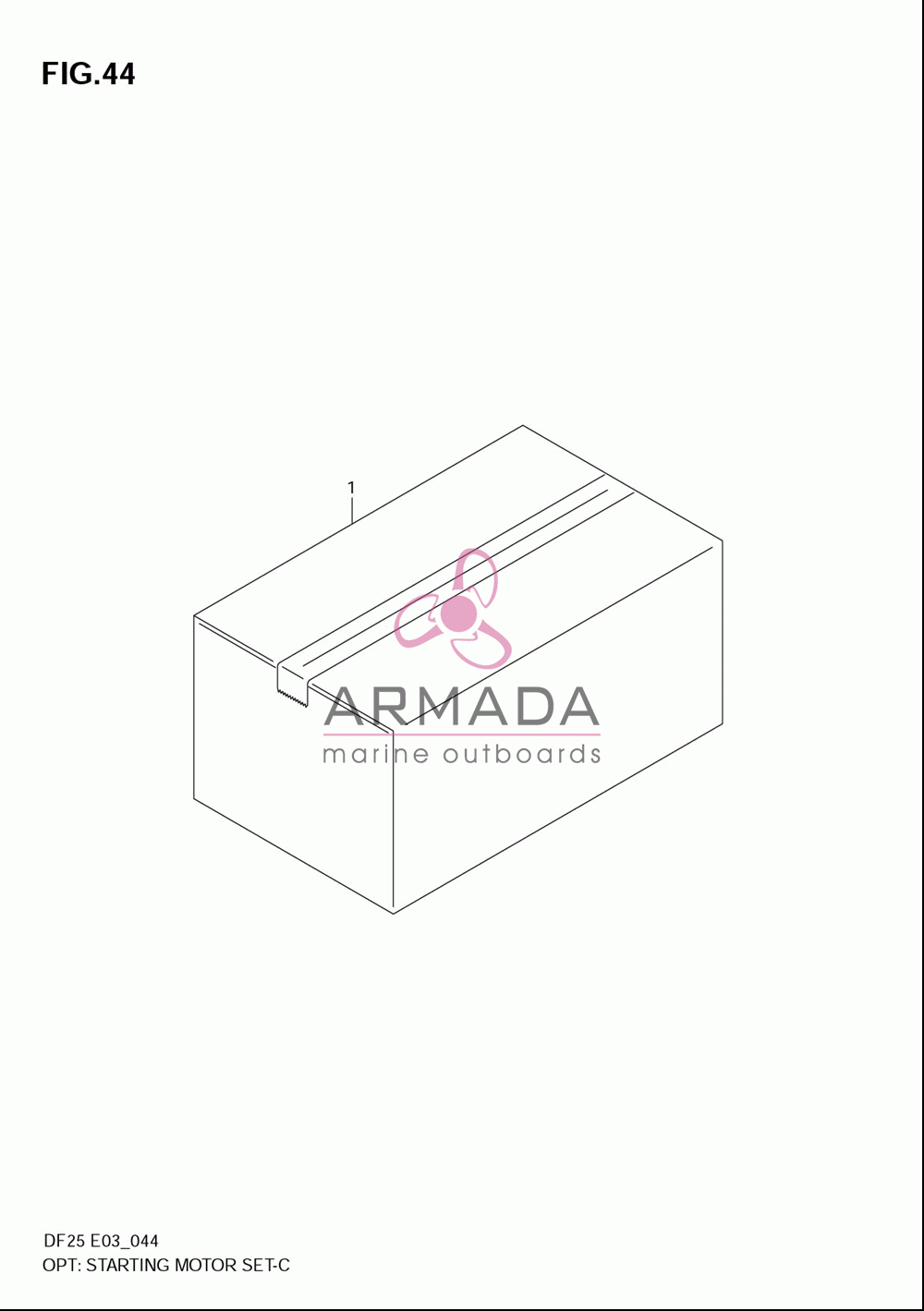

| 1 | 31000-95J00 Starter Set, Ele () |
-- под заказ |
|
| 2-1 | 11511-95J00 Cover, Magneto (not Shown, Refer To Fig.7) |
-- под заказ |
|
| 2-2 | 11511-95J01 Cover, Magneto (not Shown, Refer To Fig.7df25:681867~) |
8'519.60р под заказ |
|
| 3 | 31101-95J00 Motor Set, Start (not Shown) |
100'665.80р под заказ |
|
| 4 | 31100-95J01 Motor Assy, Star (not Shown, Refer To Fig.19) |
-- под заказ |
|
| 5 | 31911-95J00 Bracket, Starter (not Shown, Refer To Fig.19) |
4'932.40р под заказ |
|
| 6 | 31912-95J00 Band, Starter Mo (not Shown, Refer To Fig.19) |
1'569.40р под заказ |
|
| 7 | 31918-95J00 Damper, Starter (not Shown, Refer To Fig.19) |
1'008.90р под заказ |
|
| 8 | 36645-94J00 Lead Wire, Start (not Shown, Refer To Fig.19) |
2'017.80р под заказ |
|
| 9 | 38860-76F01 Relay Assy (not Shown, Refer To Fig.19) |
4'259.80р под заказ |
|
| 10 | 38915-90J00 Holder, Relay (not Shown, Refer To Fig.19) |
560.50р под заказ |
|
| 11 | 01550-08207 ..bolt, Lower (not Shown,refer To Fig.19) |
112.10р под заказ |
|
| 12 | 01550-08257 ..bolt, Upper (not Shown,refer To Fig.19) |
224.20р под заказ |
|
| 13 | 01550-08307 Bolt (not Shown, Refer To Fig.19) |
224.20р под заказ |
|
| 14 | 04211-11129 .pin (not Shown, Refer To Fig.19) |
224.20р под заказ |
|
| 15 | 04221-06129 Pin, Knock (not Shown,refer To Fig.19) |
112.10р под заказ |
|
| 16 | 08316-10087 ..nut (not Shown, Refer To Fig.19) |
112.10р под заказ |
|
| 17 | 32102-95J00 Flywheel Comp, M (not Shown, Refer To Fig.20) |
-- под заказ |
|
| 18 | 32120-95J00 Coil Comp, Stato (not Shown, Refer To Fig.20) |
67'596.30р под заказ |
|
| 19 | 32801-95J00 Rectifier & Reg (not Shown) |
-- под заказ |
|
| 20 | 32800-95J00 Rectifier & Reg (not Shown, Refer To Fig.21) |
-- под заказ |
|
| 21 | 36615-96300 Terminal (not Shown) |
224.20р под заказ |
|
| 22 | 29404-93J10 Clamp (not Shown) |
336.30р под заказ |
|
| 23 | 01550-06257 ..bolt (not Shown, Refer To Fig.21) |
112.10р под заказ |
|
| 24 | 33800-95J00 Cable Set, Start (not Shown) |
-- под заказ |
|
| 25 | 33810-95J00 Cable Assy, Star (not Shown, Refer To Fig.23) |
29'930.70р под заказ |
|
| 26 | 36610-95J00 Harness Assy, Wi (not Shown, Refer To Fig.23) |
-- под заказ |
|
| 27 | 37161-89E13 Switch, Start (not Shown, Refer To Fig.22) |
2'354.10р под заказ |
|
| 28 | 09159-14014 .nut, Starter Switch (m14) (not Shown,refer To Fig.22) |
672.60р под заказ |
|
| 29 | 61465-95J00 Emblem, Engine C (not Shown, Refer To Fig.29) |
3'699.30р под заказ |
Каталог несет в первую очередь справочную информацию, поэтому обращаем ваше внимание, что наличие деталей в каталоге не означает ее наличие на нашем складе.
