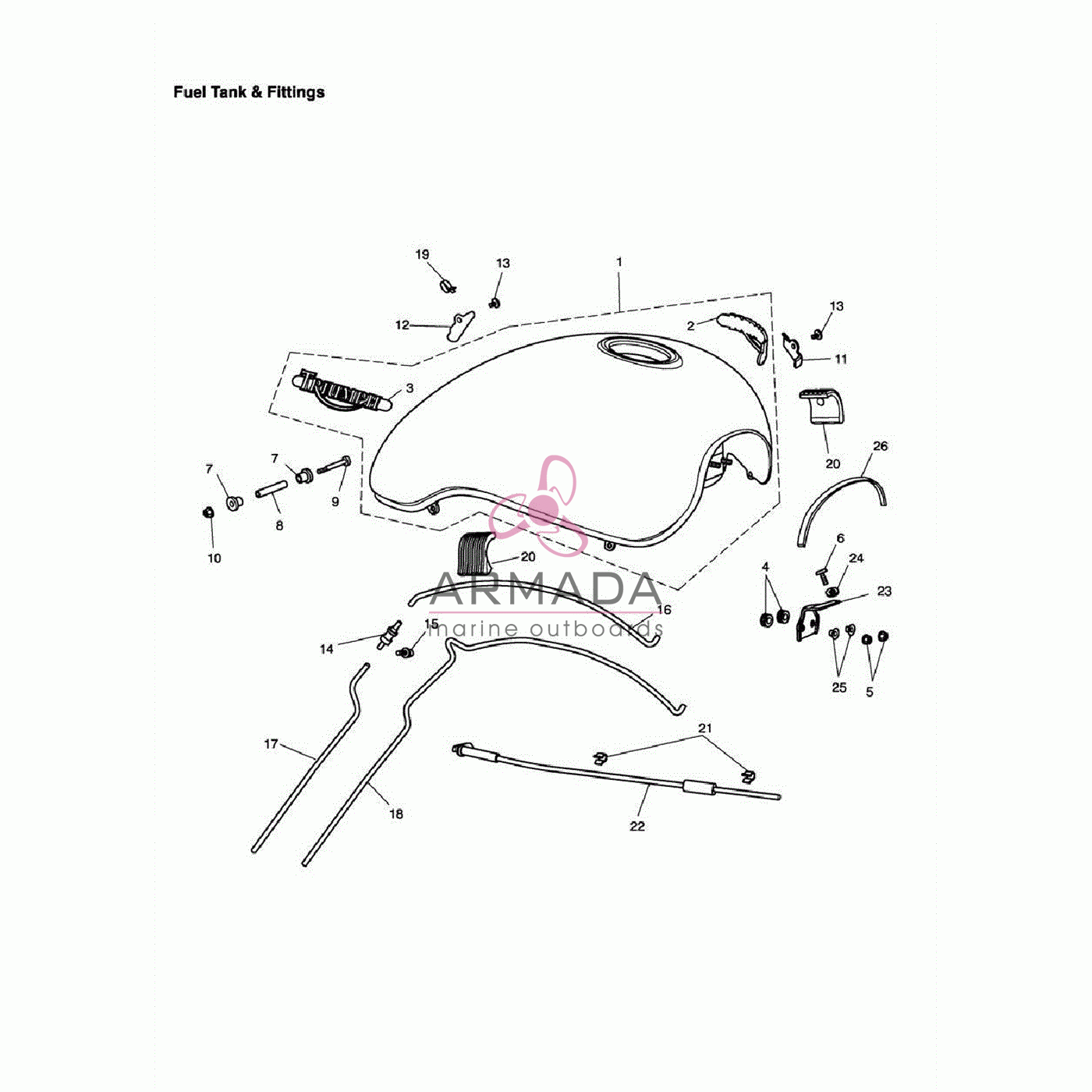

| # | код | цена | кол-во в узле |
|---|---|---|---|
| 1 | T2400491TB Fuel Tank Ass, White&cherry Red ""cherry Red/new England White - Classic Only,1"" |
208'038.60р под заказ |
|
| 1 | T2400601CS Fuel Tank Assy, Mulberry Red ""mulberry Red - Tribal Only,1"" |
178'315.76р под заказ |
|
| 1 | T2400601JR Fuel Tank Assy, Caeruleus Blue ""caeruleus Blue - Tribal Only,1"" |
178'315.76р под заказ |
|
| 1 | T2400491PG Fuel Tank Assy, Blk&sunset Red ""jet Blk/sunset Red - Classic Only,1"" |
208'038.60р под заказ |
|
| 1 | T2400470PG Fuel Tank Assy, Spares, Jet Blk ""jet Black,1"" |
208'038.60р под заказ |
|
| 1 | T2400470LC Fuel Tank Assy, Spares, Graphite ""graphite Serial Number 210262 And Higher,1"" |
208'038.60р под заказ |
|
| 1 | T2400470FG Fuel Tank Assy, Spares, Sc Ye V2 ""scorched Yellow Serial Number 241570 And Higher,1"" |
208'038.60р под заказ |
|
| 1 | T2400470CL Fuel Tank Assy, Spares, C.red ""cardinal Red,1"" |
208'038.60р под заказ |
|
| 2 | T2400442 Badge, Tank, Lh |
7'736.61р под заказ |
|
| 3 | T2400443 Badge, Tank, Rh |
7'736.61р под заказ |
|
| 4 | T3020153 Grommet; 13*3*10 Serial Number 71698 And Below |
236.74р под заказ |
|
| 6 | T3331518 Screw, But/hd, M6x1.0x20, Slv ""serial Number 89737 And Higher - M6 X 20mm, S/s"" |
671.65р под заказ |
|
| 7 | T2400446 Втулка |
414.96р под заказ |
|
| 8 | T2400449 Sleeve, Od 8.0x91 |
808.64р под заказ |
|
| 9 | T3204086 Bolt, Rhhf, M6x1x105, Blk, Enc |
396.34р под заказ |
|
| 10 | T3350012 Locknut M6 M6 |
196.84р под заказ |
|
| 11 | T2400469 Bracket, Front Airbox Mounting |
553.28р под заказ |
|
| 12 | T2400468 Bracket, Rear Airbox Mntg |
690.27р под заказ |
|
| 13 | T3330334 Screw, Tx, Pan/hd, M6x1.0x16, Slv M6 X 16mm Black |
335.16р под заказ |
|
| 14 | T2400074 Valve, Roll Over Us & Ca Only Serial Number 260568 And Higher |
5'131.14р под заказ |
|
| 15 | T3700072 Clip Cable Dia 15-16mm Serial Number 239787 And Below |
513.38р под заказ |
|
| 16 | T2400775 Hose, Formed |
1'341.97р под заказ |
|
| 18 | T2400777 Hose, Formed All Mkts Except Uc |
1'401.82р под заказ |
|
| 19 | T2046007 Clip, Cable, Dia 15.9 |
513.38р под заказ |
|
| 20 | T2400444 Rubber, Tank Support Serial Number 244782 And Below |
2'447.20р под заказ |
|
| 20 | T2400478 Rubber, Tank Support Serial Number 244783 And Higher |
2'447.20р под заказ |
|
| 21 | T3700062 Clip Cable, Firtree |
375.06р под заказ |
|
| 22 | T2402901 Support, Fuel Tank |
2'032.24р под заказ |
|
| 23 | T2400479 Pressing, Front Mount Serial Number 244783 And Higher |
1'480.29р под заказ |
|
| 23 | T2400460 Pressing, Front Mount Serial Number 244782 And Below |
1'480.29р под заказ |
|
| 24 | T3550612 Washer, 6.4x18x1.6 |
195.51р под заказ |
|
| 25 | T3010111 Flanged Sleeve, M6x10x8.5 Serial Number 4902 And Higher |
730.17р под заказ |
|
| 26 | T3660155 Foam Pad Serial Number 244782 And Below |
196.84р под заказ |
Каталог несет в первую очередь справочную информацию, поэтому обращаем ваше внимание, что наличие деталей в каталоге не означает ее наличие на нашем складе.
