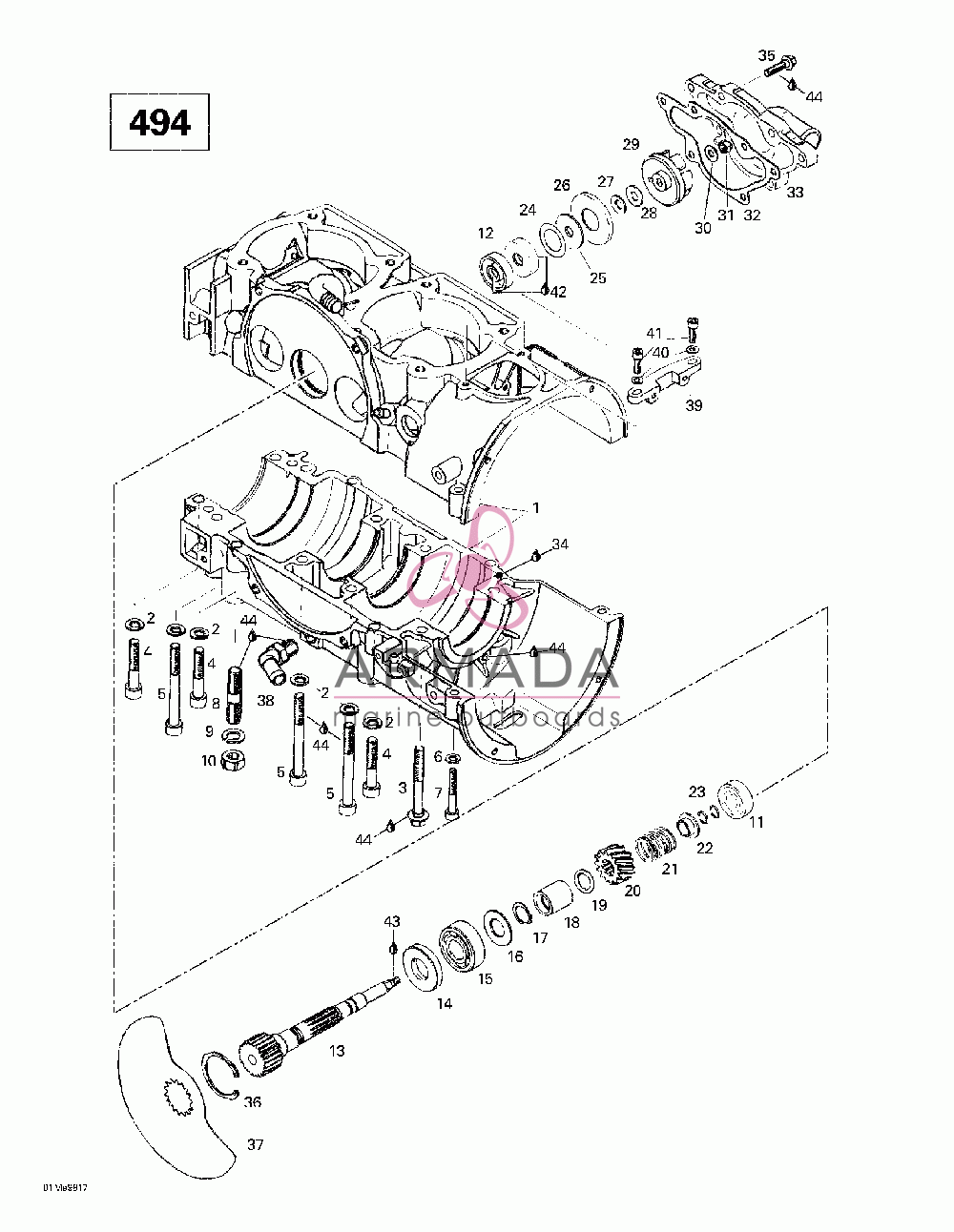

| # | код | цена | кол-во в узле |
|---|---|---|---|
| 1 | 420888011 Carter Moteur *crankcase-assy Includes 1 - 7. Skandic Wide Track Lc. |
-- под заказ |
|
| 2 | 420945752 Washer-lock Din.128 Skandic Wide Track Lc. |
169.29р под заказ |
|
| 3 | 420841306 Screw-hex Collar M8x65 Sw 11 Skandic Wide Track Lc. |
658.35р под заказ |
|
| 4 | 420841561 Screw-allen M8 X 45 Skandic Wide Track Lc. |
216.32р под заказ |
|
| 5 | 420841831 Screw-allen M8x75 Skandic Wide Track Lc. |
253.94р под заказ |
|
| 6 | 420945751 Washer-lock Din.128 Skandic Wide Track Lc. |
205.87р под заказ |
|
| 7 | 420241816 Screw-allen M6 X 40 Skandic Wide Track Lc. |
229.90р под заказ |
|
| 8 | 420941180 Stud-m10x45/20 Skandic Wide Track Lc. |
-- под заказ |
|
| 9 | 420945753 Rondelle-frein *washer-lock#10 Skandic Wide Track Lc. |
104.50р под заказ |
|
| 10 | 232006414 Nut-hexagonal Din.934 Skandic Wide Track Lc. |
144.21р под заказ |
|
| 11 | 420932797 Roulement Bille*ball Bearing Skandic Wide Track Lc. |
1'925.94р под заказ |
|
| 12 | 420850711 Anneau Etanche *seal-oil Skandic Wide Track Lc. |
1'955.20р под заказ |
|
| 13 | 420837243 Arbre Valve Rot*shaft-rotary Valve Skandic Wide Track Lc. |
9'251.39р под заказ |
|
| 14 | 420930580 Anneau Etanche *seal-oil Skandic Wide Track Lc. |
1'716.94р под заказ |
|
| 15 | 293350051 Roulement Bille*ball Bearing Skandic Wide Track Lc. |
1'925.94р под заказ |
|
| 16 | 420227439 Cale Epaisseur *shim Skandic Wide Track Lc. |
638.50р под заказ |
|
| 17 | 420845450 Bague D Arret *ring-lock Skandic Wide Track Lc. |
424.27р под заказ |
|
| 18 | 420847282 Douille Ecart. *bushing-spacer Skandic Wide Track Lc. |
1'925.94р под заказ |
|
| 19 | 293300024 Joint Torique *o-ring Skandic Wide Track Lc. |
1'023.06р под заказ |
|
| 20 | 420935736 Roue Dentee 14d*sprocket 14th Skandic Wide Track Lc. |
4'688.92р под заказ |
|
| 21 | 420938810 Ressort *spring Skandic Wide Track Lc. |
1'716.94р под заказ |
|
| 22 | 420827430 Siege Ressort *seat-spring Skandic Wide Track Lc. |
1'493.31р под заказ |
|
| 23 | 420845160 Circlip *circlip Skandic Wide Track Lc. |
424.27р под заказ |
|
| 24 | 420944462 Cale Epaisseur *shim Skandic Wide Track Lc. |
181.83р под заказ |
|
| 25 | 420850890 Rondelle *washer-rubber Skandic Wide Track Lc. |
459.80р под заказ |
|
| 26 | 420827970 Plaque *plate Skandic Wide Track Lc. |
1'459.87р под заказ |
|
| 27 | 420227945 Rondelle *washer Skandic Wide Track Lc. |
638.50р под заказ |
|
| 28 | 420227155 Rondelle *washer Skandic Wide Track Lc. |
887.21р под заказ |
|
| 29 | 420922036 Turbine A Eau *impeller-water Skandic Wide Track Lc. |
1'821.44р под заказ |
|
| 30 | 224061121 Washer-flat Skandic Wide Track Lc. |
61.66р под заказ |
|
| 31 | 420842042 Ecrou M6 *nut-locking M6 Skandic Wide Track Lc. |
-- под заказ |
|
| 32 | 420931355 Joint *gasket Skandic Wide Track Lc. |
-- под заказ |
|
| 33 | 420922551 Log.pompe Eau *hous-waterpump Skandic Wide Track Lc. |
2'714.91р под заказ |
|
| 35 | 420240031 Screw-hex.m6 X 25 Skandic Wide Track Lc. |
361.57р под заказ |
|
| 36 | 420845260 Bague D Arret *ring-lock Skandic Wide Track Lc. |
853.77р под заказ |
|
| 37 | 420924508 Valve Rotative *valve-rotary Skandic Wide Track Lc. |
6'866.70р под заказ |
|
| 38 | 420922245 Tube Angulaire *tube-angular Skandic Wide Track Lc. |
1'171.45р под заказ |
|
| 39 | 420851280 Fixation *fixation Skandic Wide Track Lc. |
104.50р под заказ |
|
| 40 | 420827800 Rondelle *washer Skandic Wide Track Lc. |
424.27р под заказ |
|
| 41 | 420240181 Screw-allen M5 X 20 Skandic Wide Track Lc. |
104.50р под заказ |
|
| 42 | 413707000 Dow Corning 111*dow Corning 111 Skandic Wide Track Lc. |
8'360.00р под заказ |
|
| 43 | 413711400 Loctite 648 *loctite-648 Skandic Wide Track Lc. |
-- под заказ |
|
| 44 | 293800060 Loctite 243 *loctite-243 Skandic Wide Track Lc. |
-- под заказ |
Каталог несет в первую очередь справочную информацию, поэтому обращаем ваше внимание, что наличие деталей в каталоге не означает ее наличие на нашем складе.
