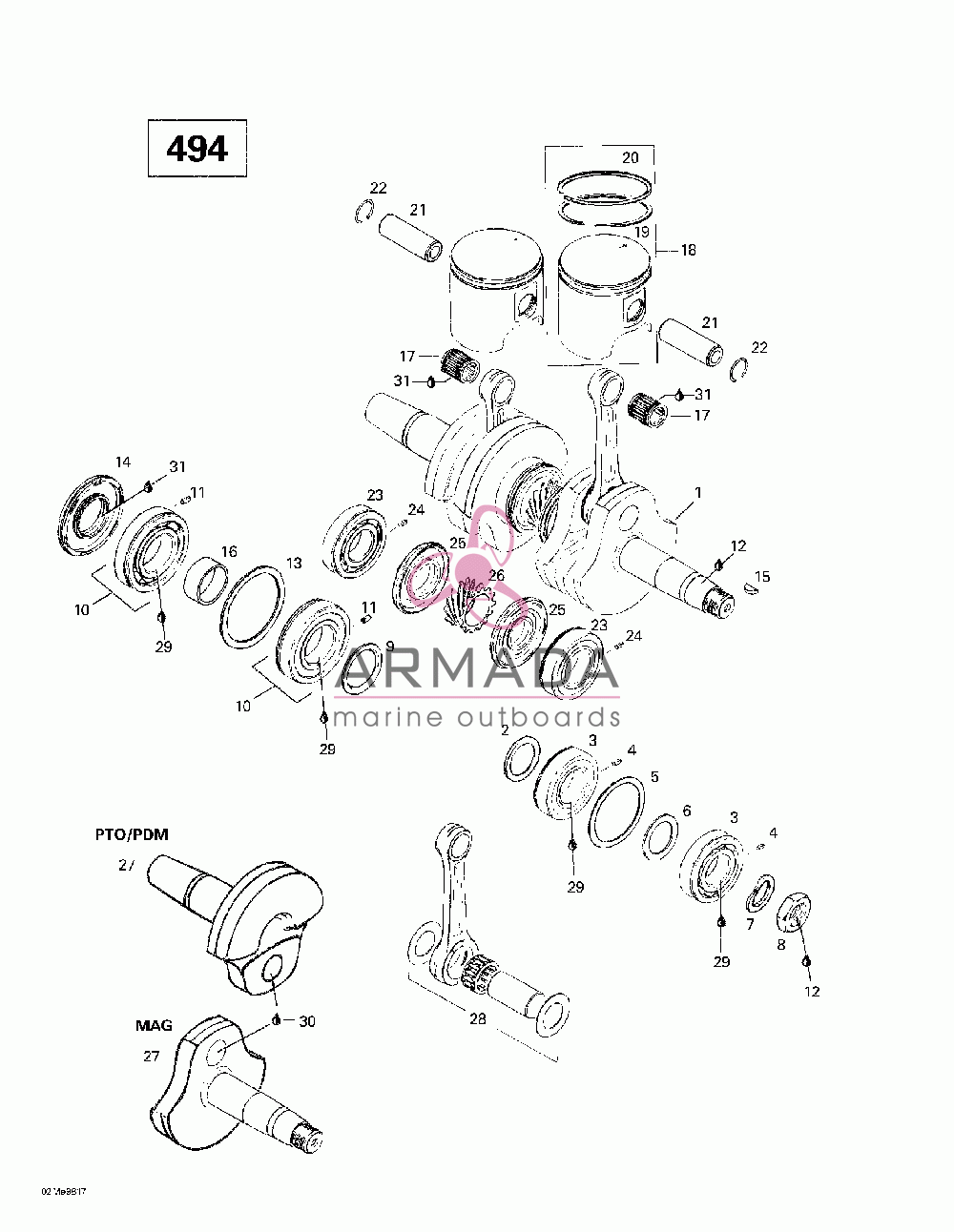

| # | код | цена | кол-во в узле |
|---|---|---|---|
| 1 | 421000151 Vilebreq.refait*crank-rebuild 494 96 Includes 1 - 16. Skandic Wide Track Lc. |
71'806.13р под заказ |
|
| 2 | 420827445 Bague Ecart. *ring-distance Skandic Wide Track Lc. |
897.66р под заказ |
|
| 3 | 420832538 Roulement Bille*ball Bearing Includes 3 - 4. Skandic Wide Track Lc. |
3'851.87р под заказ |
|
| 4 | 420929972 Goupille Ressor*pin-roll Skandic Wide Track Lc. |
361.57р под заказ |
|
| 5 | 420427684 Rondelle Ajus *washer-adj. Skandic Wide Track Lc. |
897.66р под заказ |
|
| 6 | 420827050 Disque Retenue *disk-retaining Skandic Wide Track Lc. |
1'282.22р под заказ |
|
| 7 | 420945759 Rondelle-frein *washer-lock 22 Skandic Wide Track Lc. |
321.86р под заказ |
|
| 8 | 420842239 Nut-hex.m22 X 1, 5 Skandic Wide Track Lc. |
2'358.57р под заказ |
|
| 9 | 420827760 Bague Ecart. *ring-distance Skandic Wide Track Lc. |
1'282.22р под заказ |
|
| 10 | 420832574 Roulement Bille*ball Bearing Includes 10 - 11. Skandic Wide Track Lc. |
4'717.13р под заказ |
|
| 12 | 293800060 Loctite 243 *loctite-243 Skandic Wide Track Lc. |
-- под заказ |
|
| 13 | 420927710 Disque Retenue *disk-retaining Skandic Wide Track Lc. |
1'282.22р под заказ |
|
| 14 | 420831952 Anneau Etanche *seal-oil Skandic Wide Track Lc. |
2'567.57р под заказ |
|
| 15 | 420246015 Clavette *key-woodruff Skandic Wide Track Lc. |
330.22р под заказ |
|
| 16 | 420847684 Douille *sleeve-dista. Skandic Wide Track Lc. |
2'095.23р под заказ |
|
| 17 | 420832438 Roul.aiguille *needle Bearing Skandic Wide Track Lc. |
2'079.55р под заказ |
|
| 18 | 420887555 Piston *piston Includes 18 - 20. Skandic Wide Track Lc. |
18'460.97р под заказ |
|
| 420887556 Piston *piston Skandic Wide Track Lc. |
15'973.87р под заказ |
||
| 19 | 420915985 Segment R 69.5 *ring-r 69.5 Skandic Wide Track Lc. |
4'448.57р под заказ |
|
| 420915986 Segment R 69.75*ring-r 69.75 Skandic Wide Track Lc. |
5'403.70р под заказ |
||
| 20 | 420815043 Segment Semi-tr*ring-semi Trap Skandic Wide Track Lc. |
6'061.00р под заказ |
|
| 420815044 Segment Semi-tr*ring-semi Trap Skandic Wide Track Lc. |
5'568.81р под заказ |
||
| 21 | 420916186 Axe De Piston *pin-gudgeon Skandic Wide Track Lc. |
3'030.50р под заказ |
|
| 22 | 420945735 Circlip Piston *circlip-piston Skandic Wide Track Lc. |
519.37р под заказ |
|
| 25 | 420831990 Anneau Etanche *seal-oil Skandic Wide Track Lc. |
2'358.57р под заказ |
|
| 26 | 420935748 Engrenage Cent.*gear-central Skandic Wide Track Lc. |
-- под заказ |
|
| 27 | 420818660 Vilebrequin Pto*crankshaft-pto Skandic Wide Track Lc. |
-- под заказ |
|
| 420818690 Vilebrequin Mag*crankshaft-mag Skandic Wide Track Lc. |
-- под заказ |
||
| 28 | 420886955 Ens.tige Rep. *kit-rod Repair Pto Skandic Wide Track Lc. |
22'893.86р под заказ |
|
| 420886956 Ens.tige Rep. *kit-rod Repair Mag Skandic Wide Track Lc. |
22'893.86р под заказ |
||
| 30 | 413711400 Loctite 648 *loctite-648 Skandic Wide Track Lc. |
-- под заказ |
|
| 31 | 413707000 Dow Corning 111*dow Corning 111 Skandic Wide Track Lc. |
8'360.00р под заказ |
|
| 8 | 420842239 Ecrou*hex Nut M22x1, 5 Skandic Wide Track Lc. |
2'358.57р под заказ |
|
| 11 | 420929972 Goupille Ressor*pin-roll Skandic Wide Track Lc. |
361.57р под заказ |
|
| 23 | 420832538 Roulement Bille*ball Bearing Includes 23 - 24. Skandic Wide Track Lc. |
3'851.87р под заказ |
|
| 24 | 420929972 Goupille Ressor*pin-roll Skandic Wide Track Lc. |
361.57р под заказ |
Каталог несет в первую очередь справочную информацию, поэтому обращаем ваше внимание, что наличие деталей в каталоге не означает ее наличие на нашем складе.
